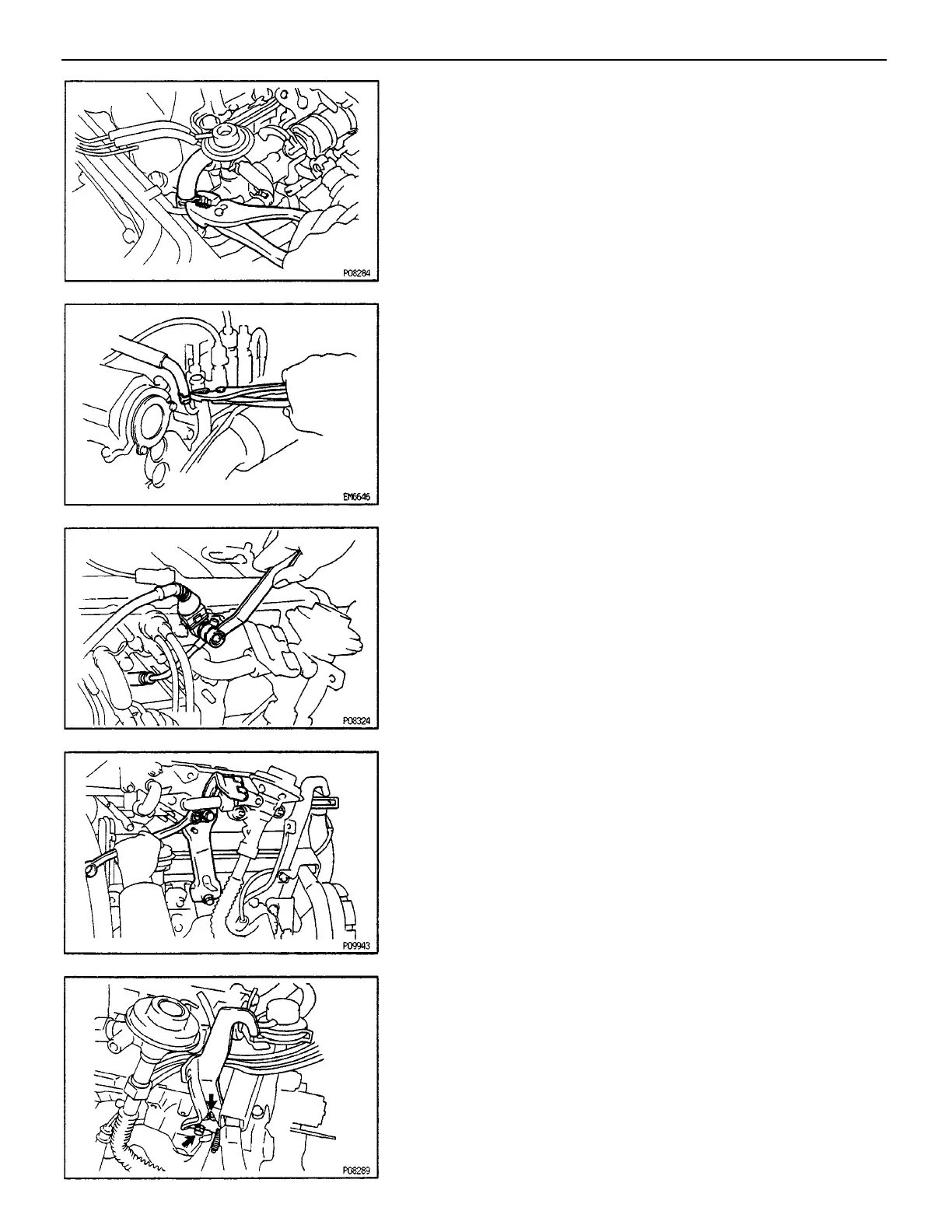

(g) Disconnect the cold start injector connector.
(h) Disconnect the vacuum hose from the gas filter.
(i) Remove the union bolt, two gaskets and cold start
injector tube.
(j) (Calif. and C & C)
Disconnect the EGR gas temperature sensor con–
nector.
(k) Disconnect the EGR vacuum hoses from the air pipe
and EGR vacuum modulator.
(e) Disconnect the No.4 water by–pass hose from the
union of intake manifold.
(f) Remove the No.5 water by–pass hose from the water
by–pass pipe.
(i) Remove the nut, two bolts, intake chamber stay and
throttle cable bracket.
(m) Remove the two bolts and No. 1 engine hanger.
–ENGINE ENGINE MECHANICAL
EG2–54
