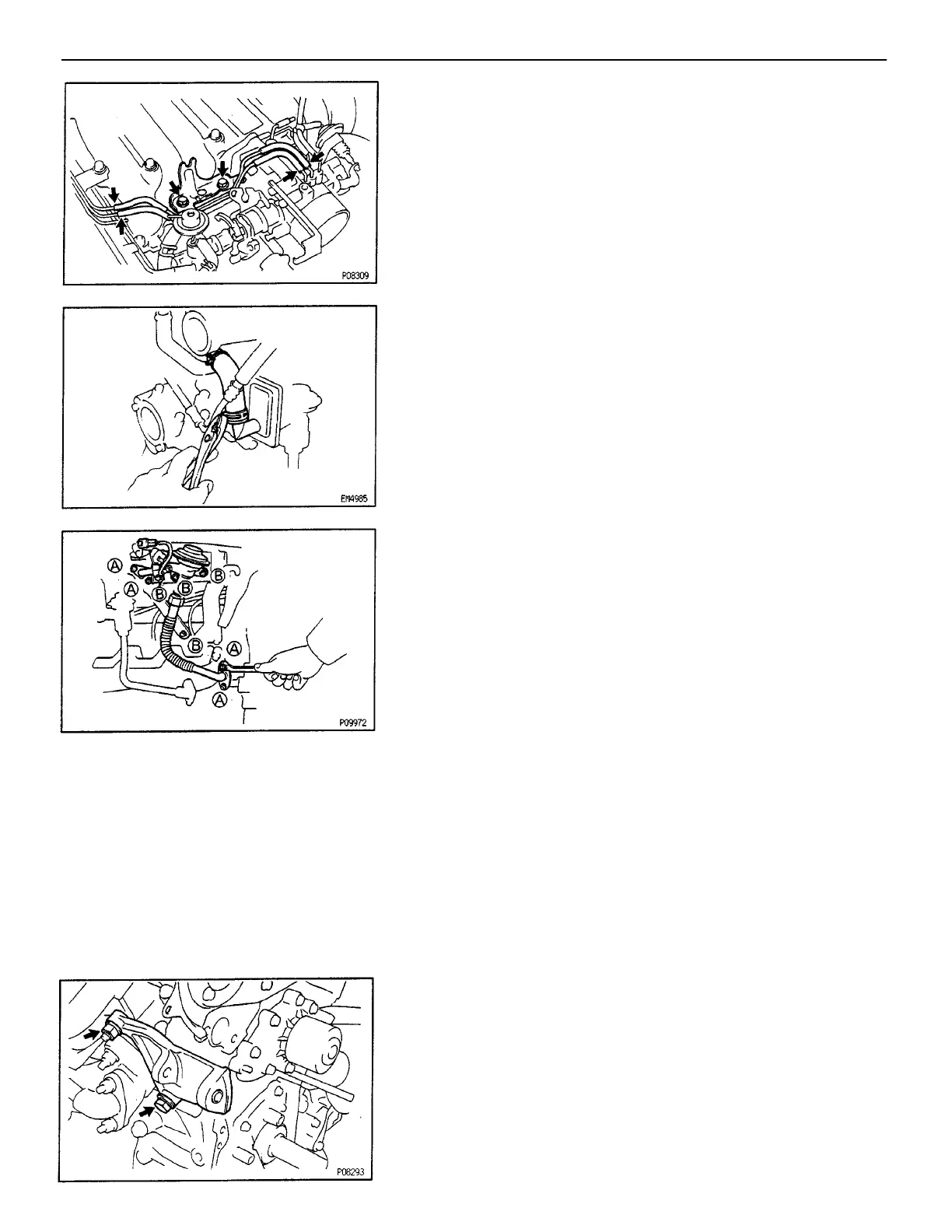

(f) (C & C only)
Disconnect the two water by–pass hoses from the
EGR valve.
(g) Connect the EGR hoses to the air pipe and EGR
vacuum modulator.
(h) (Calif. and C & C)
Connect the EGR gas temperature sensor connector.
(e) Install two new gaskets, the EGR valve, pipes as–
sembly, air intake chamber stay and throttle cable
bracket with the six nuts and two bolts.
Torque:
29 N–m (300 kgf–cm, 22 ft–Ibf) for (A)
18 N–m (185 kgf–cm, 13 ft–lbf) for (B)
(b) Install the accelerator cable bracket with the two
bolts.
(c) Connect the four vacuum hoses to the air pipes.
(i) Install the PS pump bracket with the bolt and nut.
(d) Connect the No.1 air hose to the reed valve.
–ENGINE ENGINE MECHANICAL
EG2–85
