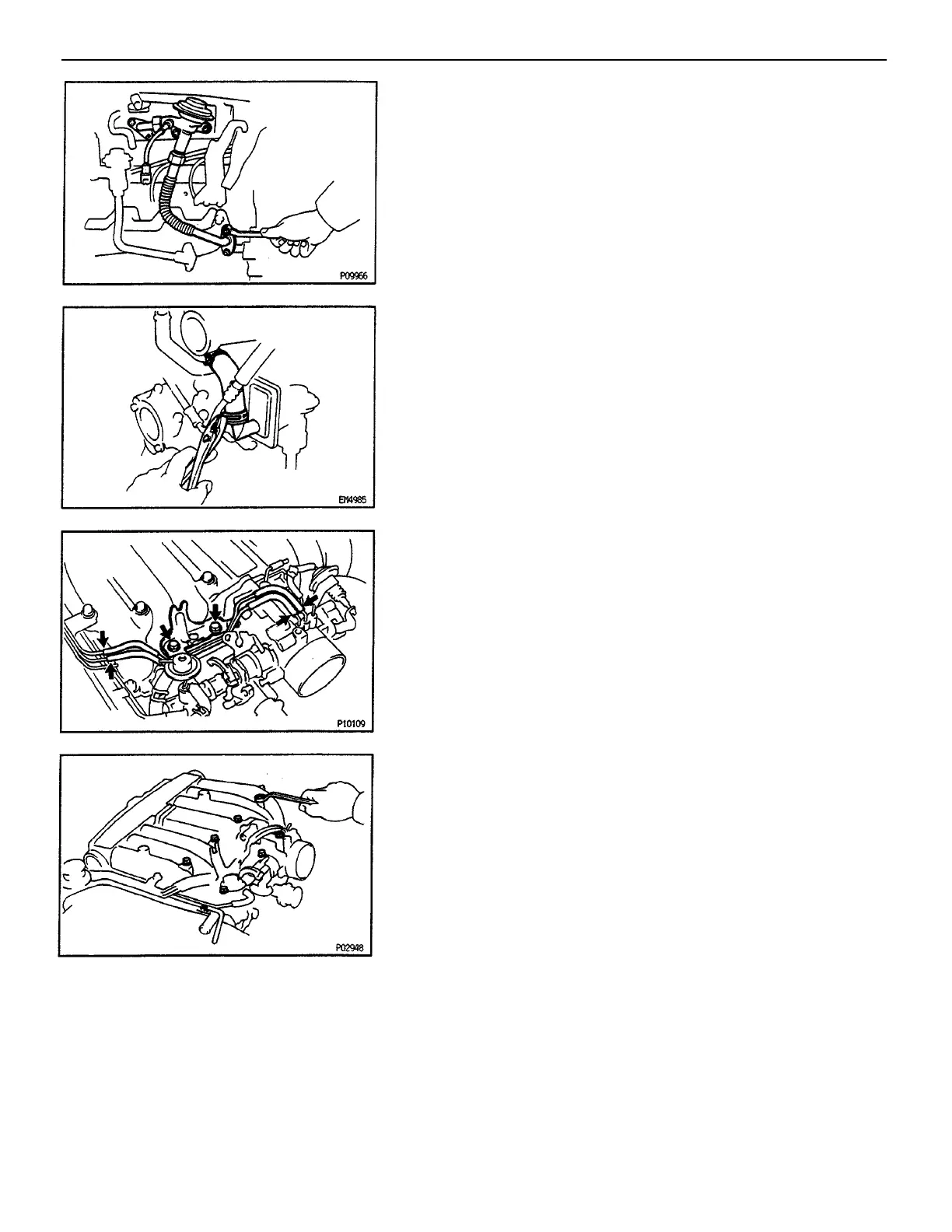

8. REMOVE ENGINE WIRE
(a) Disconnect–the following connectors:
• Knock sensor connector
• Cold start injector time switch connector
• Engine coolant temp. sensor connector
• Engine coolant temp. sender gauge connector
• RH ground strap from No.3 camshaft bearing cap
• Injector connectors
(I) (C & C only)
Disconnect the two water by–pass hoses from the
EGR valve.
(m) Remove the five nuts, EGR valve with the pipes and
two gaskets.
(q) Remove the six bolts, two nuts, intake chamber and
gasket.
(o) Disconnect the four vacuum hoses from air pipes.
(p) Remove the two bolts and accelerator cable bracket.
(n) Disconnect the No.1 air hose from the PAIR reed
valve.
