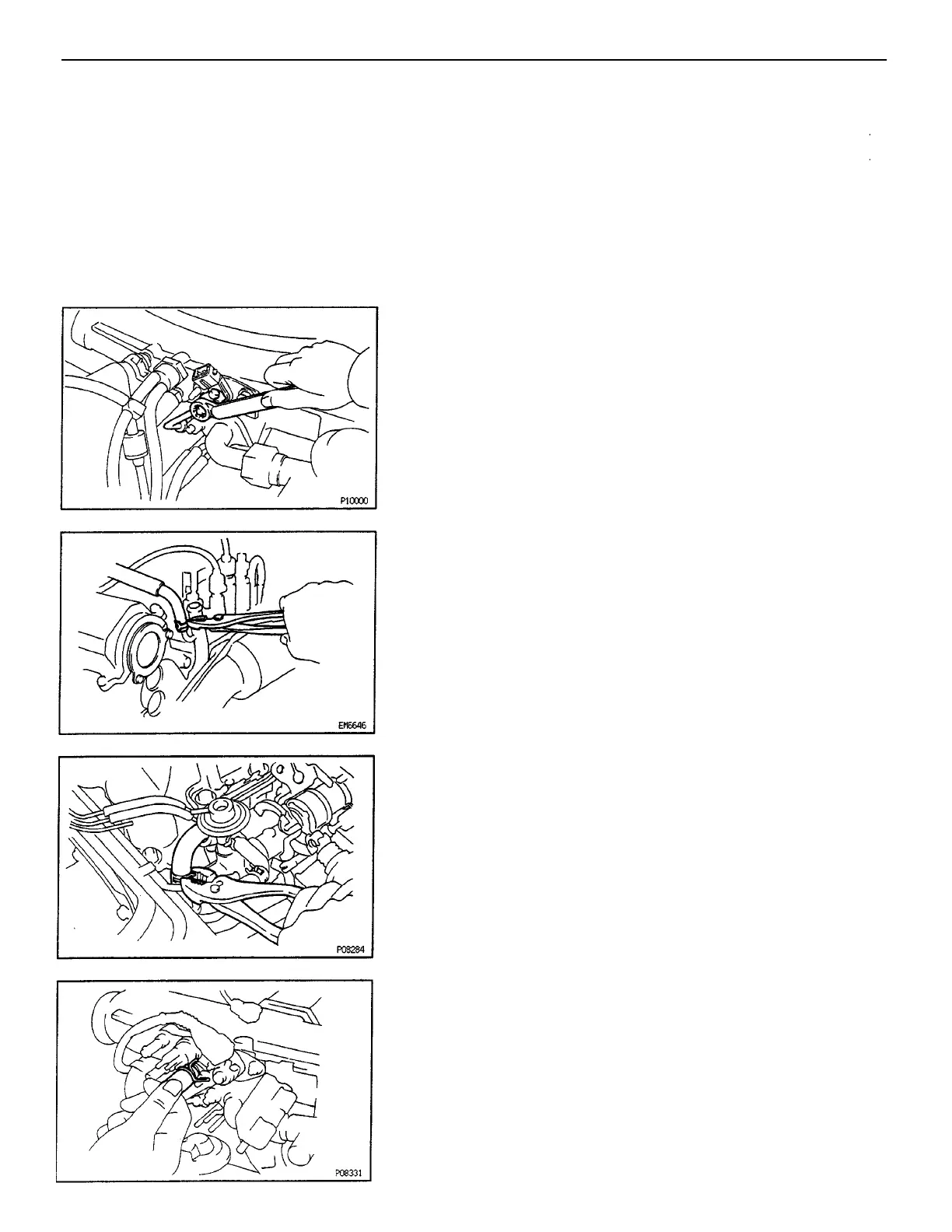

(j) Connect the EGR hoses to the air pipe and EGR
vacuum modulator.
(k) (California and C & C)
Connect the EGR gas temp. sensor connector.
(I) Connect the vacuum hose to the gas filter.
(m) Connect the cold start injector tube with a new gasket
and the union bolt.
Torque: 15 N–m (150 kgf–cm, 13 ft–lbf)
(n) Connect the cold start injector connector.
(o) Install the No.5 water by–pass hose to the water by
–pass pipe.
(p) Connect the No.4 water by–pass hose to the union of
the intake manifold.
(q) Connect the PCV hose to the union.
