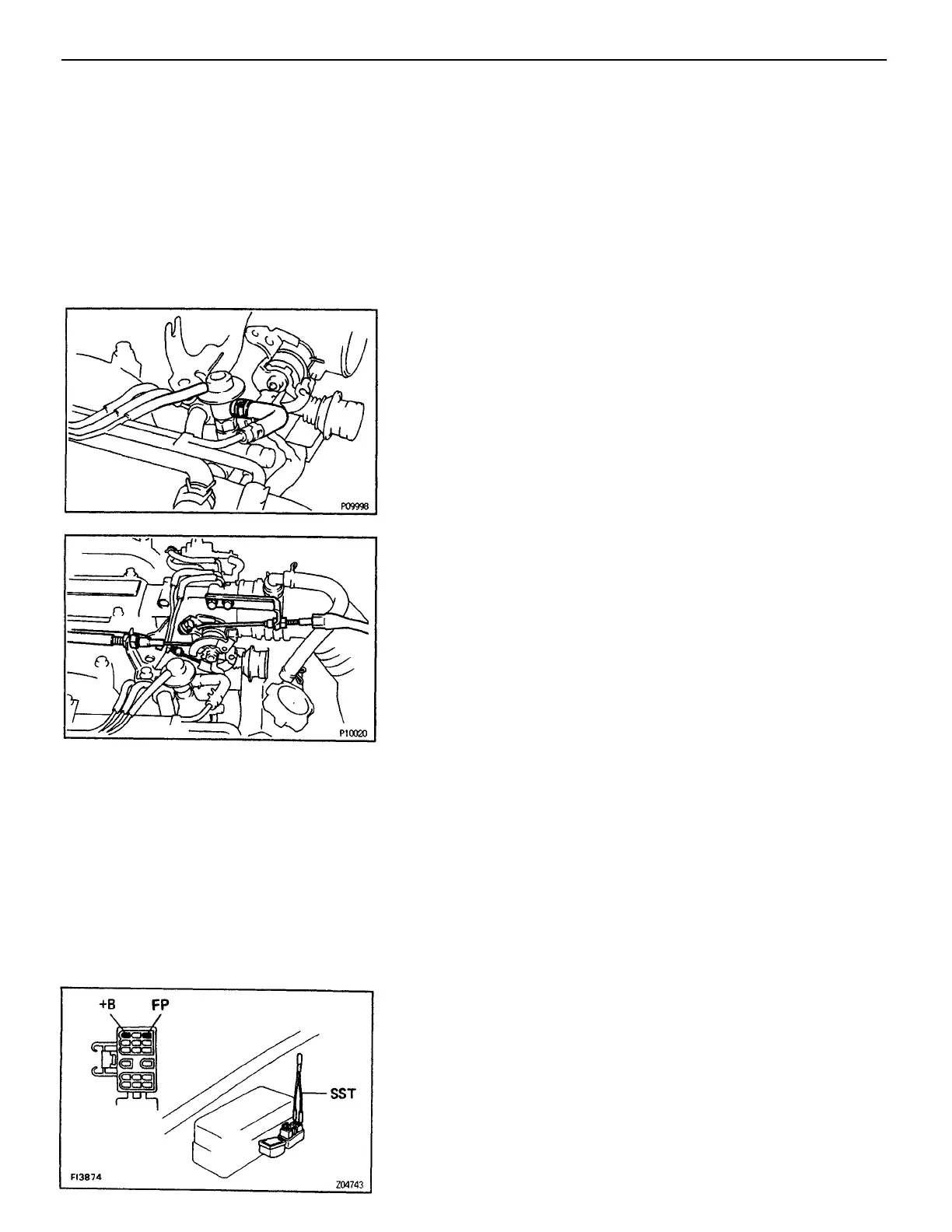

11. CHECK FOR FUEL LEAKAGE
(a) With the ignition switch ON, use SST to connect
terminals FP and +B of the DLC1.
SST 09843–18020
(b) Check for fuel leakage.
(c) Remove SST from the DLC1.
8. CONNECT FOLLOWING CABLES:
(a) (A/T)
Throttle cable
(b) Accelerator cable
(c) (w/ Cruise control)
Actuator cable with bracket
(r) Connect the canister vacuum hose to the throttle
body.
(s) Connect the throttle position sensor connector.
9. REFILL WITH ENGINE COOLANT
10. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
5. CONNECT FUEL RETURN HOSE
6. CONNECT VACUUM SENSING HOSE
7. CONNECT AIR CLEANER HOSE
–ENGINE MFI SYSTEM
EG2–230
To Next Page
