4. NEVER allow the tachometer terminals to touch
ground as it could result in damage to the igniter
and/or ignition coil.
5. Do not disconnect the battery while the engine is
running.
PRECAUTIONS
IG051–02
1. Do not leave the ignition switch on for more than 10
minutes if the engine does not start.

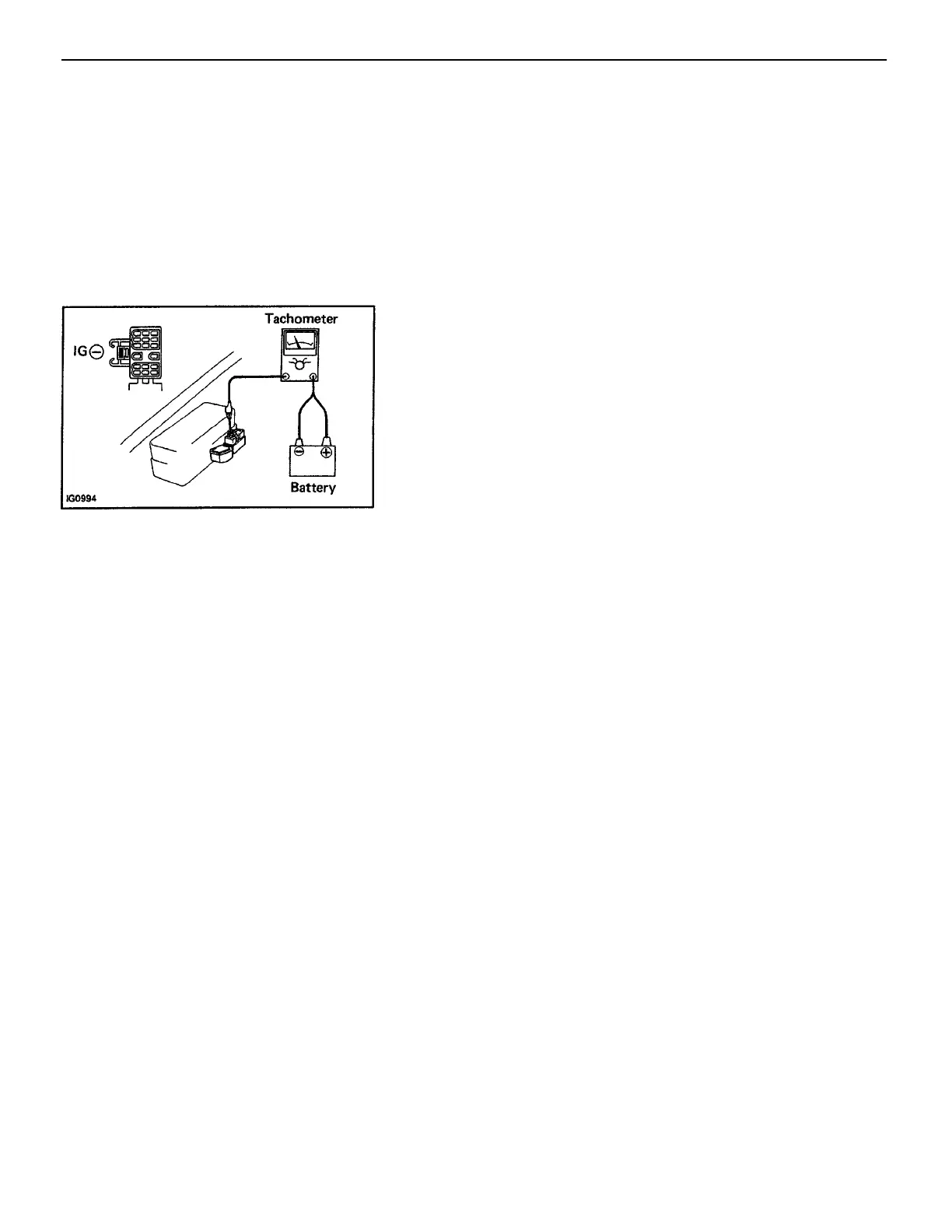

2. With a tachometer is connected to the system,
connect the tachometer positive terminal to the IG
(–) terminal of the DLC1.
3. As some tachometers are not compatible with this
ignition system, we recommend that you confirm
the compatibility of your unit before use.
6. Make sure that the igniter is properly grounded to
the body.
–IGNITION SYSTEM (3VZ–E)
IG–15
