Xerox Phaser 790

Unpacking the Printer 1. Setting up the Phaser 790
Xerox Phaser 790 1-19

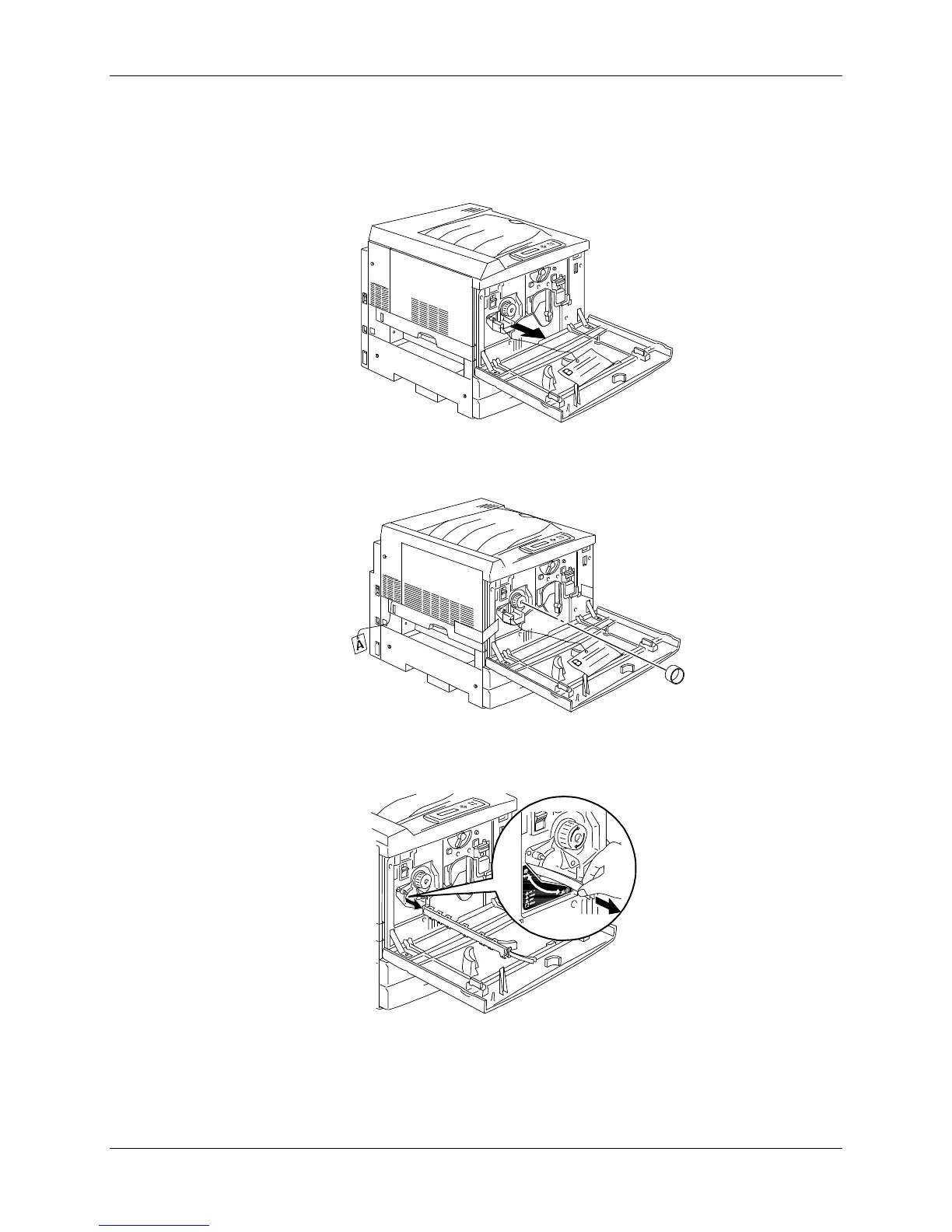

11. Remove all the internal packing from the Printer by performing steps a
through m.
a. Remove the spacer labeled B.
301025A-WOL
0
b. Remove the cardboard collar from the knob shown below.
301245A-WOL
0
c. Pull the narrow strip labeled G from the Dry Ink chamber.
301026B-WOL
0
