Unpacking the Printer 1. Setting up the Phaser 790

Xerox Phaser 790 1-21

h. Close the Paper Tray 1.

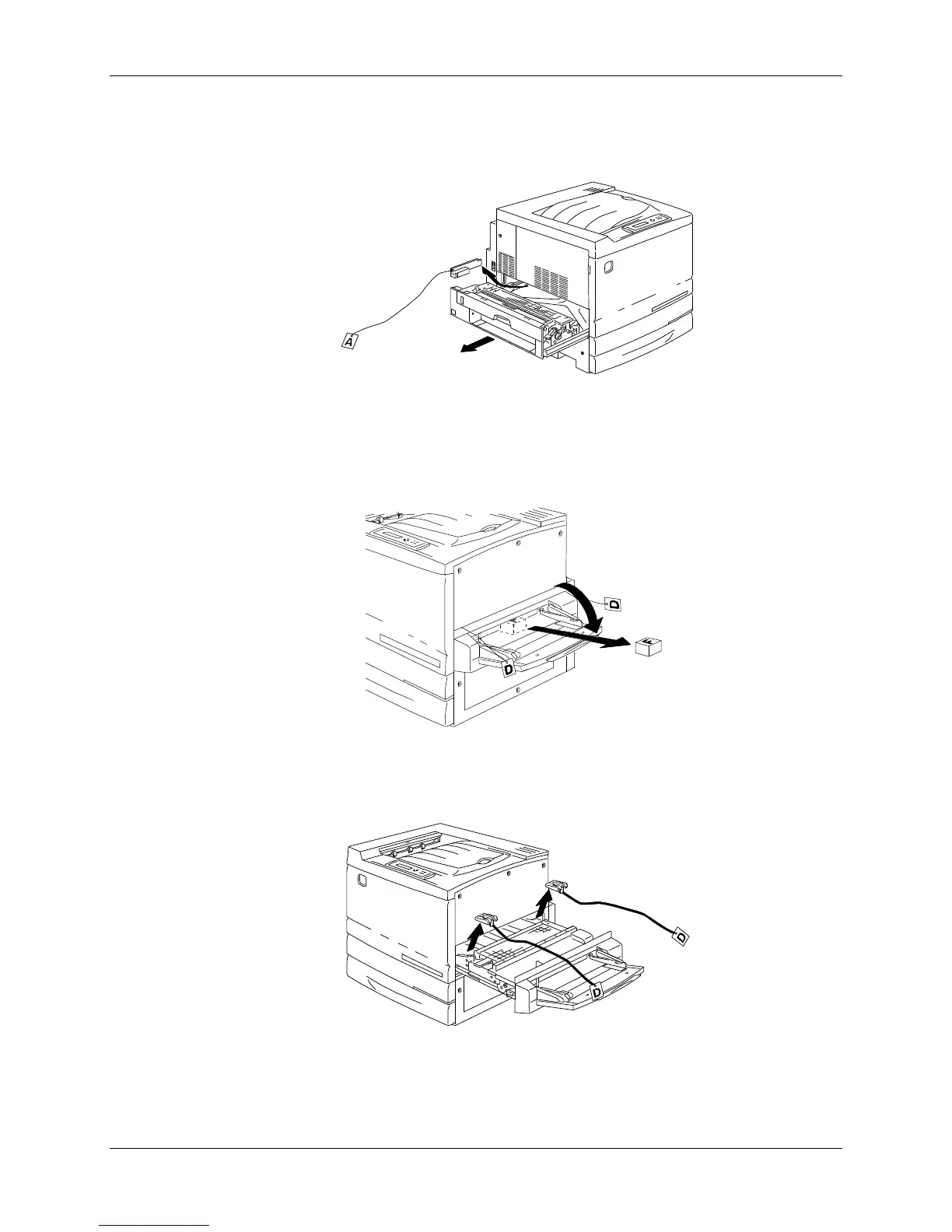

i. Gently pull the Fuser area open and remove the spacer labeled A.

301022B-WOL

j. Close the Fuser area.

k. Open the Bypass Tray and remove the spacer labeled F.

301020B-WOL

l. Gently pull the Bypass Tray in order to open the Bypass Transport,

and remove the two spacers labeled D.

301021B-WOL
