Printer installation 1. Setting up the Phaser 790

Xerox Phaser 790 1-27

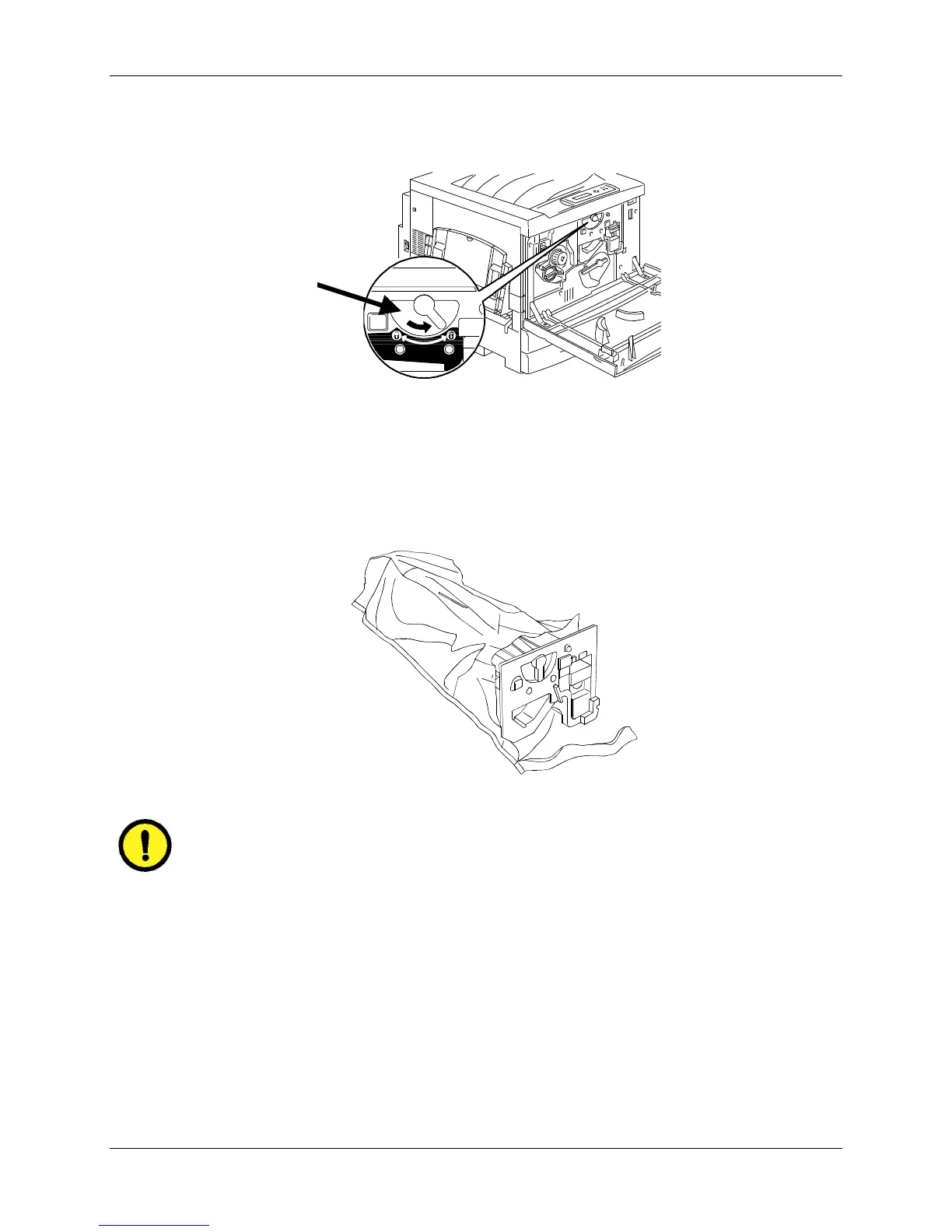

3. Rotate the yellow lever B in the direction of the arrow until the dot is

aligned with the Unlocked symbol.

301035B-WOL

4. Install the Copy/Print Cartridge:

a. Remove the Copy/Print Cartridge from the box.

b. Tear open the notched end of the silver protective bag and remove

the cartridge.

301081a

CAUTION

DO NOT touch the blue surface of the drum. If the drum is scratched, or

contaminated with oil from your hand, the output can be degraded.
