4.5.3.3 Display Variable Names
When {Var. Name} option is turned on, the variable number is replaced
with variable names. The variable should be named beforehand, using the
instruction in chapter 4.6 “User Variables”.
{Var. Name} can be turned ON / OFF during both MANUAL (TEACH) and
AUTOMATIC (PLAY) mode.

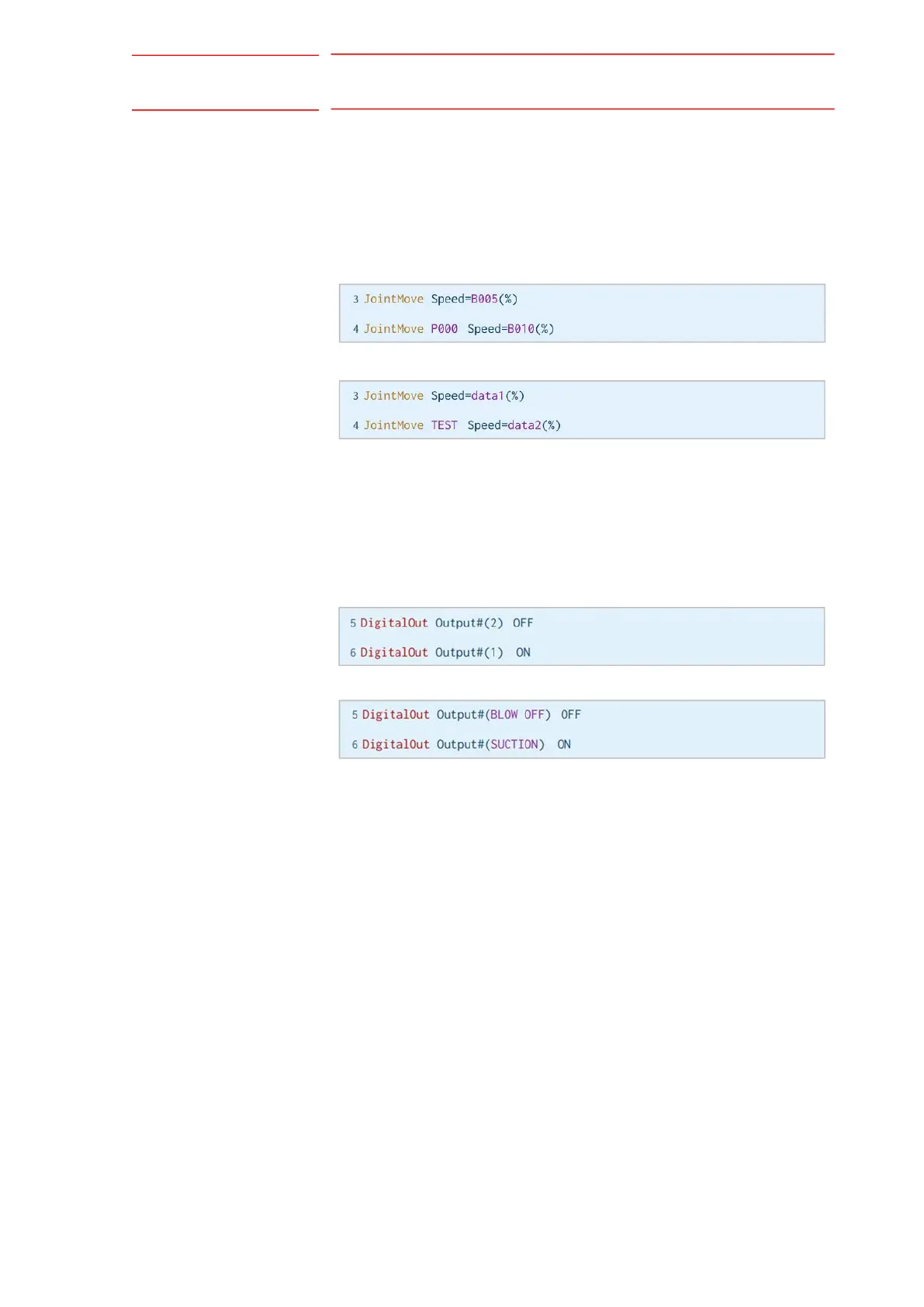

Fig. 4-19: Display Variables Numbers (with Display Variable Names OFF)
Fig. 4-20: Display Variables Names (with Display Variable Names ON)
4.5.3.4 Display I/O Names
When {IO Name} is turned on, the I/O number is replaced with I/O names.
The I/O should be named beforehand, using the instruction in chapter 4.6.
{IO Name} can be turned ON / OFF during both MANUAL (TEACH) and
AUTOMATIC (PLAY) mode.
Fig. 4-21: Display I/O Numbers (with Display IO Names OFF)
Fig. 4-22: Display I/O Names (with Display IO Names ON)
