7 Concurrent I/O (Input/Output)
7.8 I/O Allocation and EtherNet/IP Configuration
7-40
HW1485509
HW1485509
7.8.2 Input/Output Table
The Input/Output table provides a visual representation of the Inputs and
Outputs allocated for the YRC Controller. This is divided into two tables
because the Input and Output properties do not always match (e.g. a
device could have 16 bytes of Inputs but only 8 bytes of Outputs, etc…).
On the Table View, each device is grouped together and selecting any
group within a device will highlight the entire device and display the details
in the panel below.

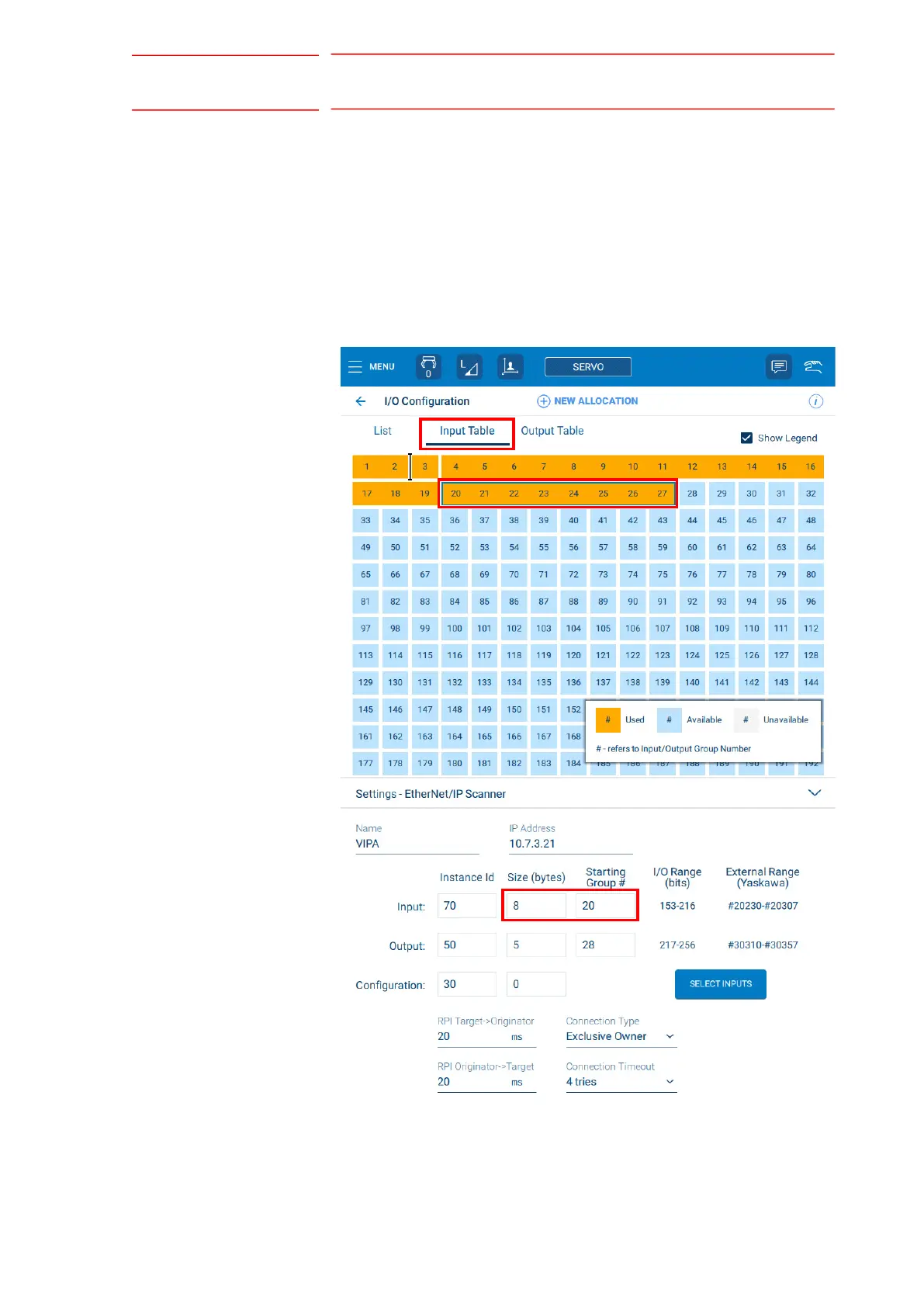

For example, the device selected below begins on Group 20 and is 8
bytes in length. Thus, pressing anywhere in the range of Group 20-27 will
highlight the entire range and display the details on the panel below.
