2.4 Coordinate Frames and Manipulator Jogging
A manipulator can be jogged in MANUAL (TEACH) mode using different
methods supported by the Smart Pendant. The various jogging modes
can be selected using three different controls:
– {Operation Coordinate System} on Status Bar
– {Mode} on Robot Jog panel
– [Jog Mode] membrane key (can be used only for Joint, World, Tool,
User and Hand Guiding mode selection)

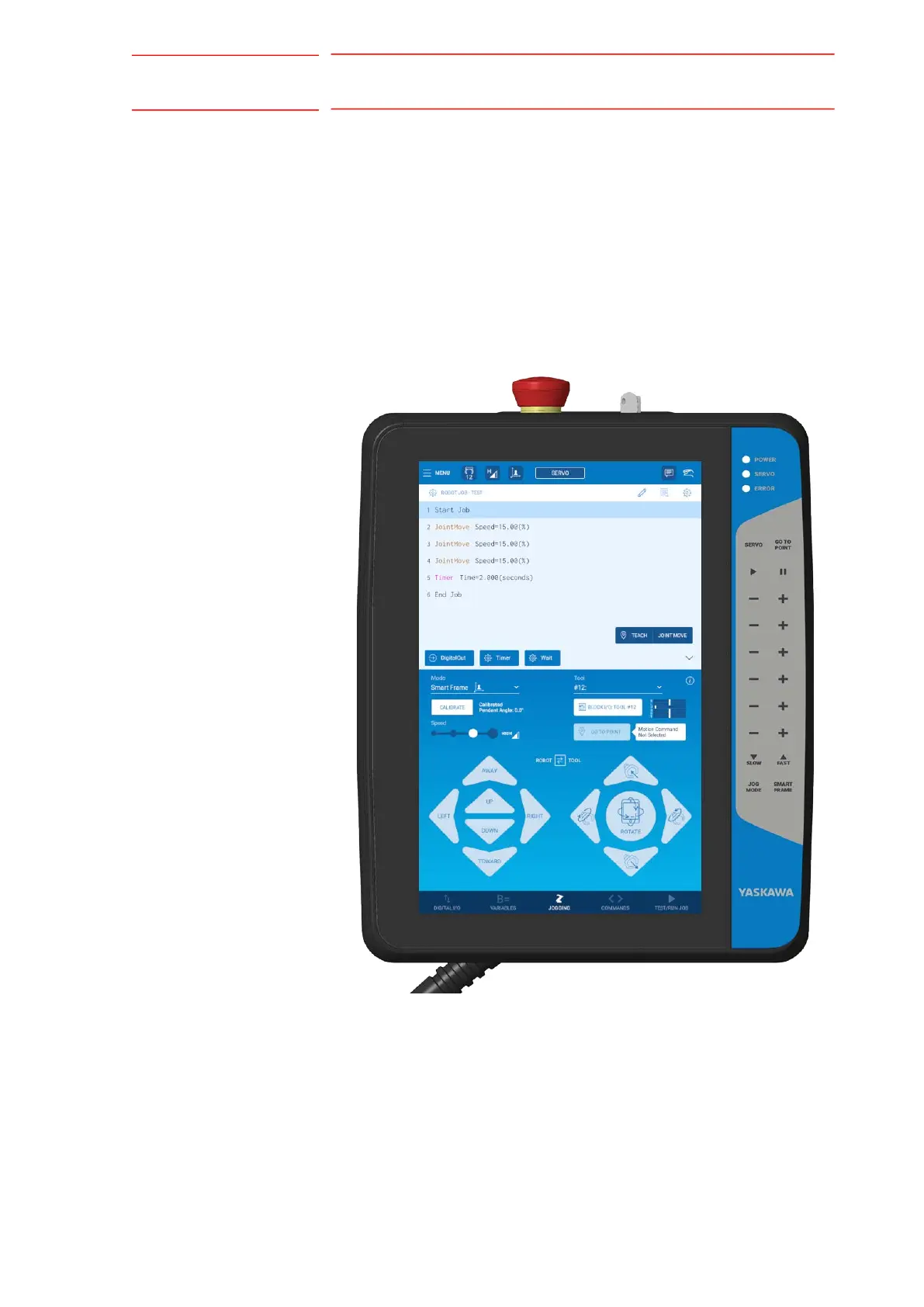

Fig. 2-2: Changing Jogging Mode
