11.4.3 Safety Functions List View
11.4.3.1 List View

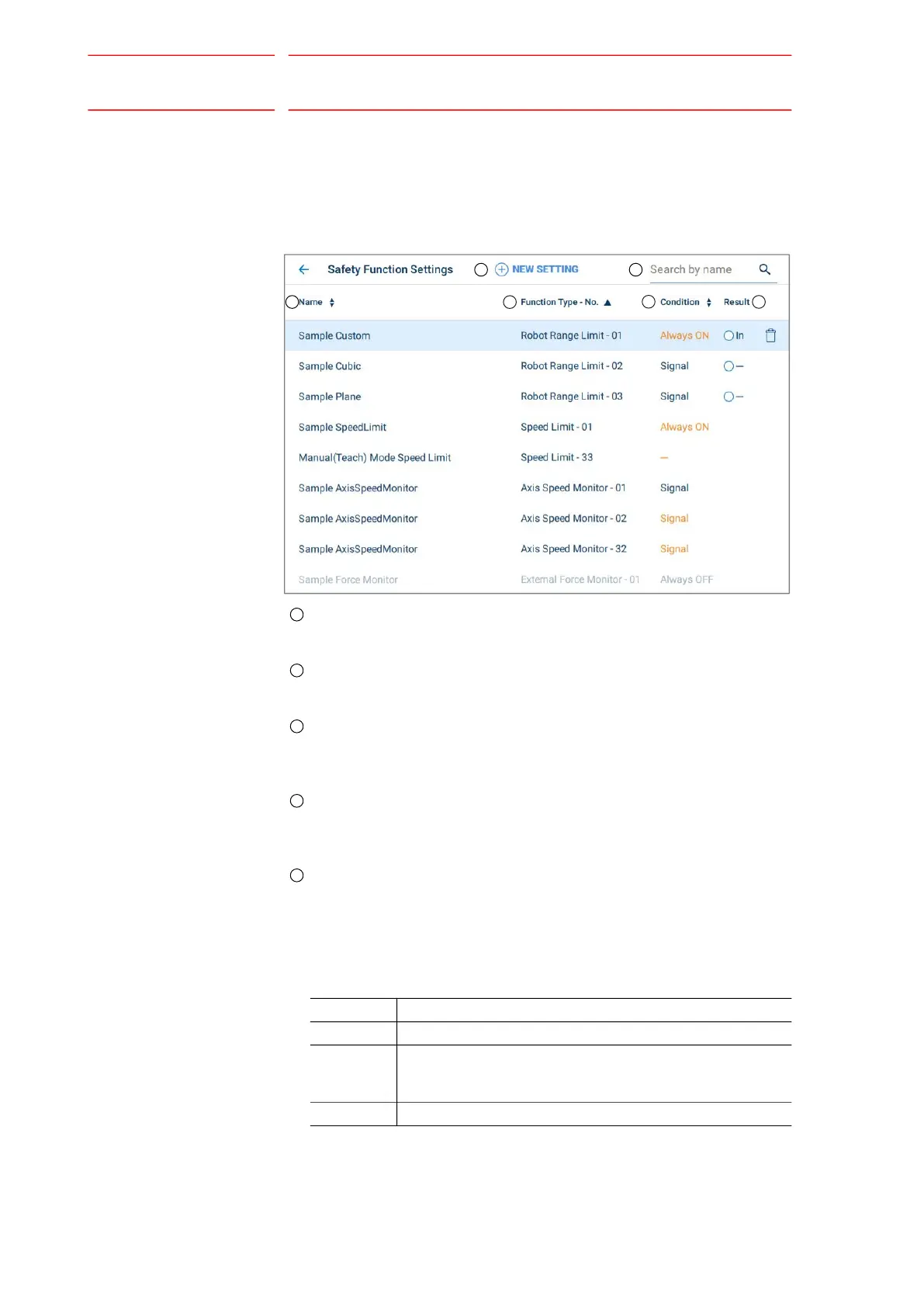

Safety functions list view shows the safety function list which is set.
To show this list, select {MENU}  {Safety Function}  {Safety
Functions}.
+ NEW SETTING
Create new safety setting.
Search by Name
Search the setting in the list by name.
Name
It shows name of the setting.
It can be sorted by name.
ID Number
It shows ID Number of the setting.
It can be sorted by ID Number.
Condition
It shows Enable Condition of the setting.
It can be sorted by Enable Condition.
The color of Enable Condition is changed as monitoring state.
Correspondence between the color and monitoring state is as following
table.
Color Monitoring State
Gray Monitoring is always OFF.
Black Monitoring is OFF.
It does not match as the condition of safety input signal. Or the
setting is temporary disabled.
Orange Monitoring is ON.
