11.3.5 Setting ON/OFF Status to the Input Signals
The meaning of the ON/OFF status of input signals used in the safety
logic circuit can be switched. For example, the meaning of PPESP
(Pendant Emergency Stop) is usually Active = Under Emergency Stop,
Inactive = Normal. This can be changed to Active = Normal, Inactive =
Under Emergency Stop.

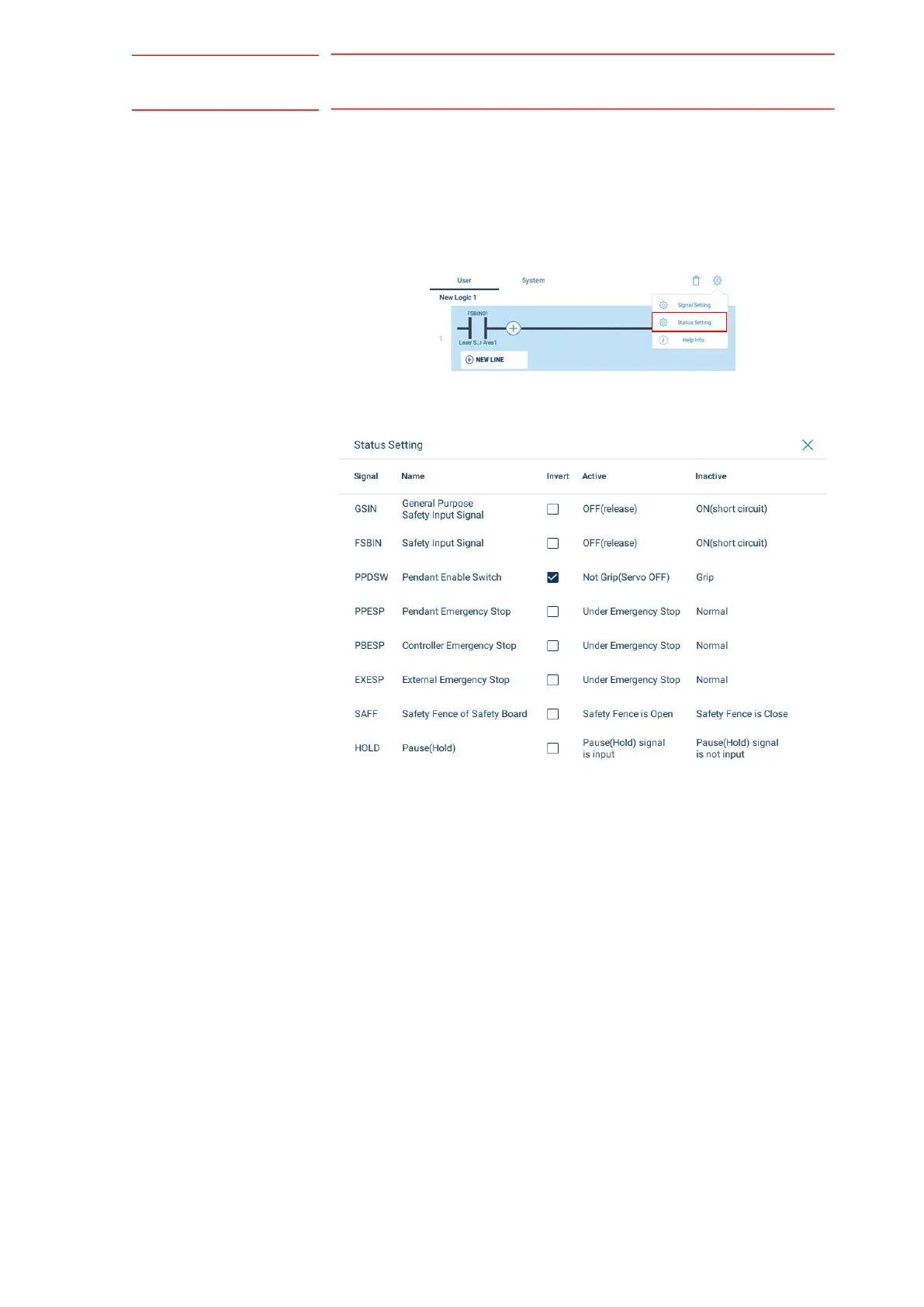

1. Select {Setting} icon - {Status Setting}
2. The meaning of the Active/Inactive status of input signals used in the
safety logic circuit can be inverted by pressing checkbox.
