7 Concurrent I/O (Input/Output)
7.8 I/O Allocation and EtherNet/IP Configuration
7-47
HW1485509
HW1485509

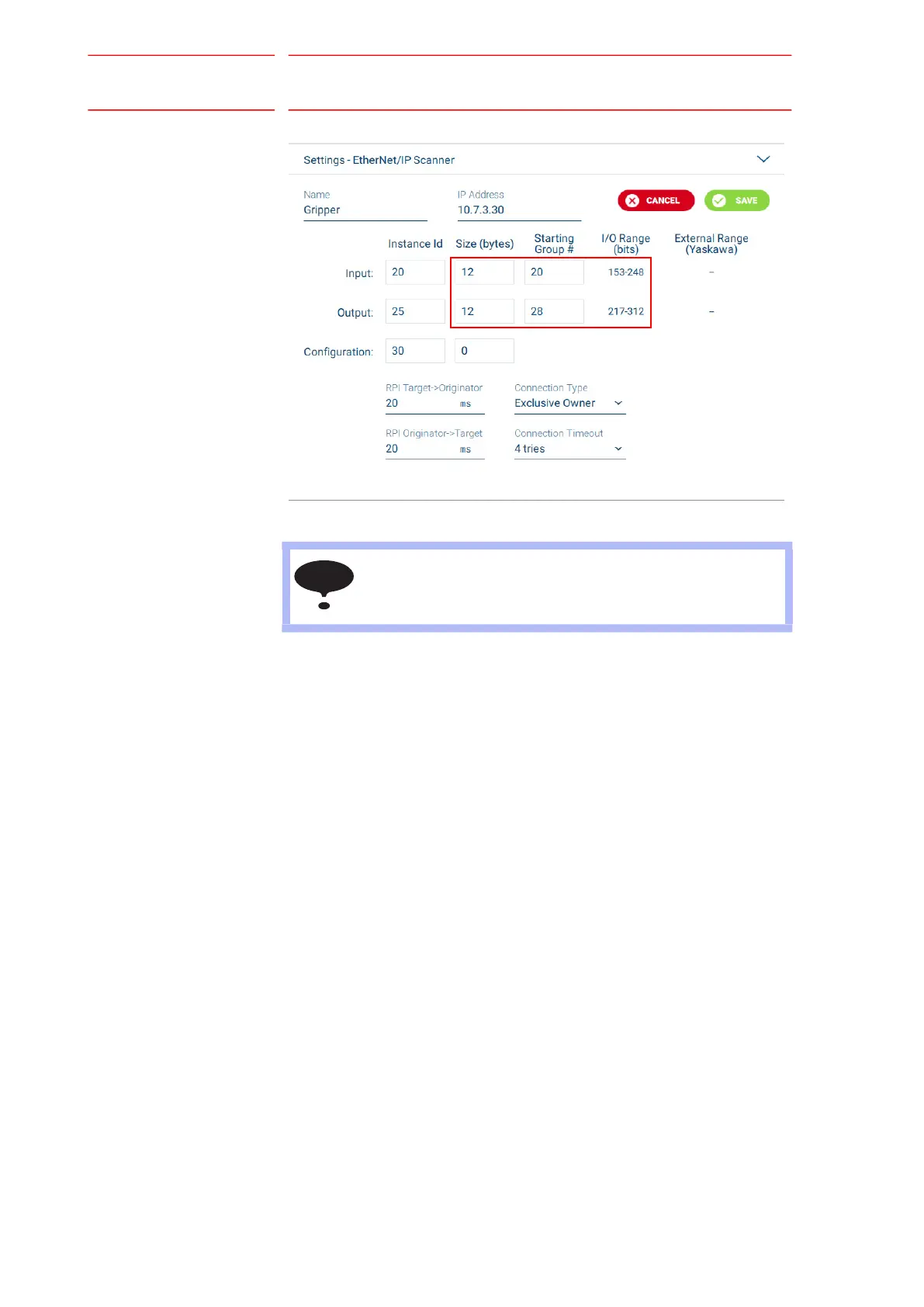

Fig. 7-40: Inputting Scanner Sizes
5. Enter the RPI and Connection information at the bottom of the screen.
– These values should not be changed from their default values
unless the instructions from the manufacturer say to do so.
6. Reboot the YRC Controller to verify configuration.
– Note that a reboot does not have to be done immediately, but the
settings will not take effect until after a reboot.
The Input, Output, and Configuration Sizes must match
exactly between the YRC Controller and the PLC for correct
communications.
