EoF Overview
TheEoFapplicationprovidestheoptiontodeliverGigabitservicespeedstocustomersover
opticalfacilities.Initialnetworkterminationunitswillsupportpointtopointdeploymentor
deliveryfromanyEthernetfacility.

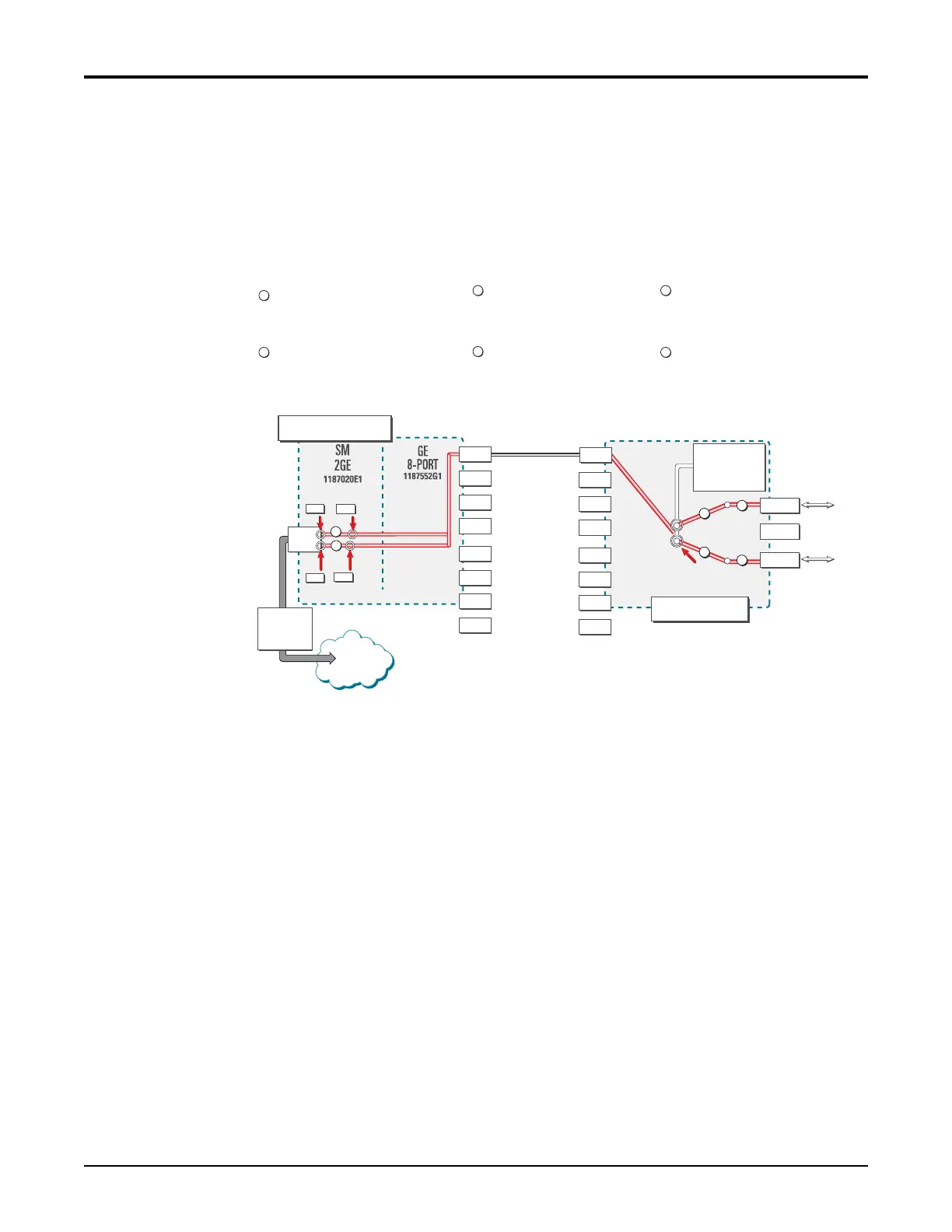

Figure7‐1displaysanoverviewoftheEoFdeployment.
Figure 7-1. EoF Diagram
1
Total Access 5000 “Cross Connect”
• End Point 1→ PORT, NET 1
• End Point 2→ GigE Port
• S-tag = 2010
2
Total Access 5000 “Cross Connect”
• End Point 1→ PORT, NET 1
• End Point 2→ GigE Port
• S-tag = 2020
4
NetVanta 8044 Entities/Commands
EVC EVC-2020
GigE Port #8
S-TAG 2020
3
NetVanta 8044 Entities/Commands
EVC EVC-2010
GigE Port #2
S-TAG 2010
6
NetVanta 8044 Entities/Commands
EVC-MAP MAP-2020
UNI ETH 3
Connect-EVC EVC-2020
5
NetVanta 8044 Entities/Commands
EVC-MAP MAP-2010
UNI ETH 1
Connect-EVC EVC-2010
EoF
System Diagram
Octal GigE Fiber
Metro
Ethernet
Network
GigE VLAN
2010 +2020
Management
VLAN 2048
1
2
GigE #2
GigE #1
GigE #4
GigE #3
GigE #6
GigE #5
GigE #8
GigE #7
2010
2020
Available EVC’s and
Management VLAN
Pushed Down by
Total Access 5000
GigE #1
3
4
6
5
EVC 2020
GigE #2
VLAN
2020
VLAN
2010
Total Access 5000
EP2
EP1
EP1
EP2
NetVanta 8044
NET 1
GigE #3-7
GigE #8
GigE #2
GigE #4
GigE #3
GigE #6
GigE #5
GigE #8
GigE #7
GigE #1
