Figure F-3. E-Line Service - EVC per Multiple CE-VLANs
FigureF‐4providesamoredetailedviewofthemappingofthecustomerVLANsintothe
EVCintheUNI‐to‐MENdirection.Forthisexample,theCoSforeachreceivedcustomer
frameisinheritedfromtheP‐bitvalueoftheoutermostcustomerVLANtag.Thefollowing
provisioningwould
applyoneachsystem.
•EVC#1:MENPort=EFM‐Group1/0/1,S‐tag=101,CE‐VLAN‐IDPreservation=Enabled
•EVC‐map#1:UNI=Ethernet1/0/1,CE‐VLAN‐ID=1,EVC=1,MEN‐Pri=Inherit
•EVC‐map#2:UNI=Ethernet1/0/1,CE‐VLAN‐ID=
2,EVC=1,MEN‐Pri=Inherit

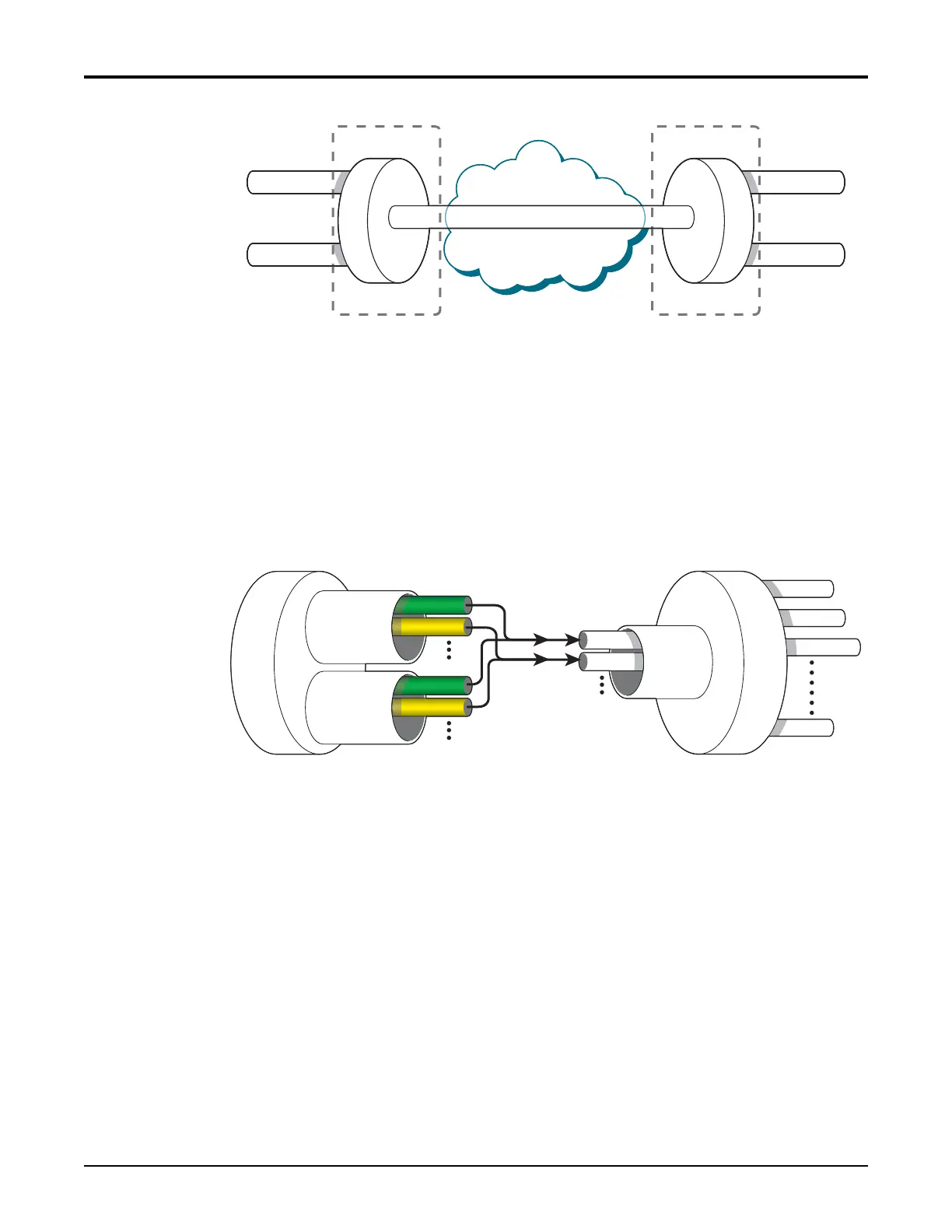

Figure F-4. Detailed Mapping of a Point-to-Point EVC
Example #3: EVC Map Forwarding
WhentwoormoreEVCmapshaveoverlappingcriteriaandanincomingpacketmatchestwo
ormoreofthecriteriafortheEVCmaps,theEVCmapthathasprovisioningoptionshigherin
theorderofprecedence(refertoRule13onpage F‐3)isusedtoforwardtraffic.
Anexample
inwhichthreeEVCmapsareconfiguredontheNCTEisdefinedasfollows:

evc-map 1
connect uni eth 1/0/1
match l2cp
match ce-vlan-id 1
match ce-vlan-pri 5
UNI
CE VLAN 1
CE VLAN 2
MEN
UNI
CE VLAN 1
CE VLAN 2
EVC #1, SVID = 101
UNI
P-bit 6
P-bit 7
CE VLAN ID 1
P-bit 6
P-bit 7
CE VLAN ID 2
Customer
Interface
P-bit 7
P-bit 6
EVC #1
SVID 101
Bonding
Group
Metro Ethernet
Network Interface
Link #1
Link #n
Link #2
Link #3

ADTRAN Total Access 5000 Specifications

Interfaces

craft interface	DB-9 RS-232 Electrical Interface (Async)
admin interface	DB-9 RS-232 DTE Electrical Interface (Async with Modem Control Signals)
network management port	DB-9 RS-232 DTE Electrical Interface (Async)
ethernet interface	10Bt
external alarm inputs	16

Operating Environment

operating temperature	-40°C to +65°C
storage temperature	-40°C to +70°C
relative humidity	Up to 95%, non-condensing

Weight and Dimensions

height	9.25 in.
width	0.08 in.
depth	9.5 in.
weight	0.6 lbs.
