ADTRAN Total Access 5000 Deployment Guide

Appendix B, SHDSL Rate Reach Information - Bonded 49-self Reach for a Minimum Rate of 10Mbps
65K510DEP08-1A B-3
Bonded 49-self Reach for a Minimum Rate of 10Mbps

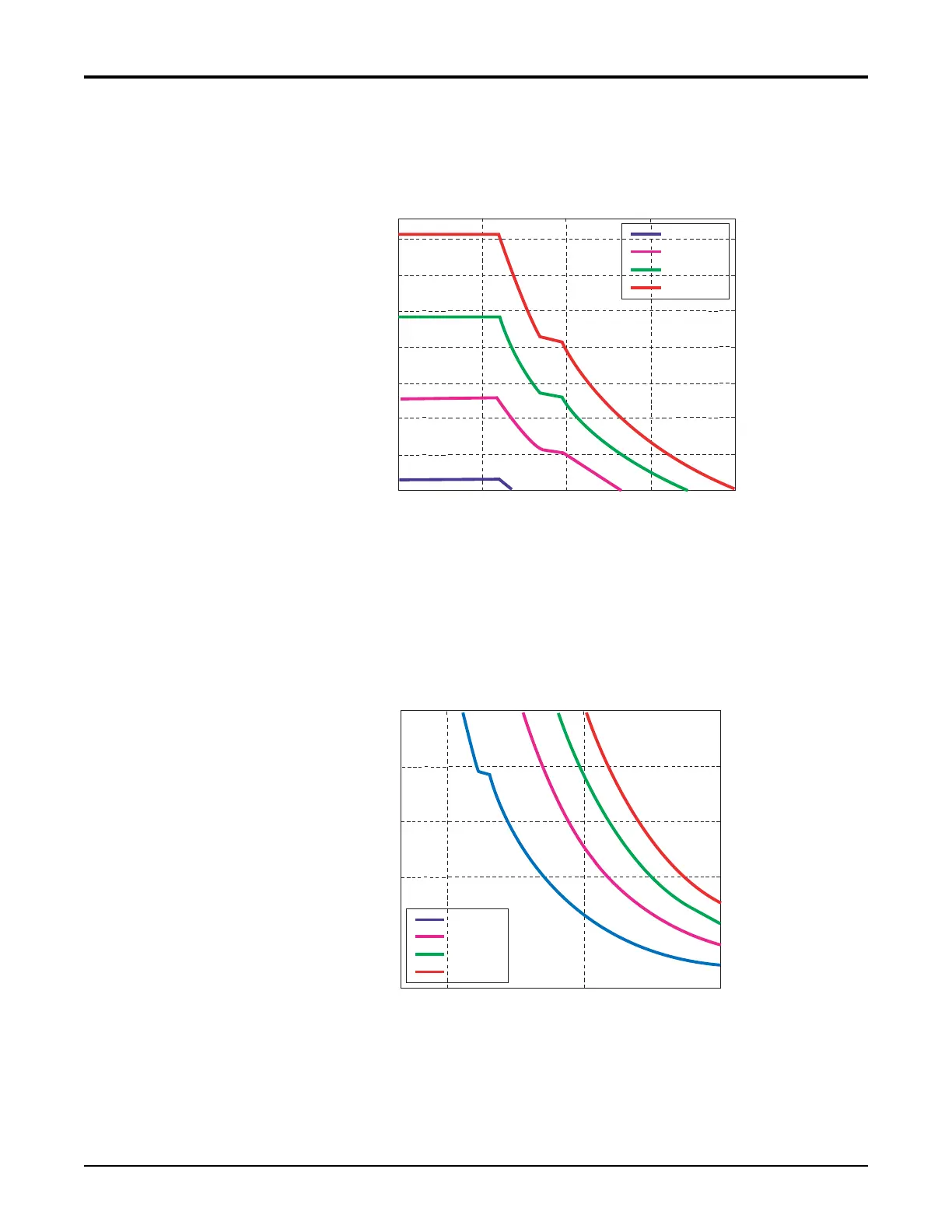

FigureB‐3displaysabondedmulti‐pairdeploymentreachonAWG24(rates>10Mbps).
Figure B-3. Bonded Multi-pair Deployment Reach on AWG24 (rates >10Mbps)
Bonded 49-self Reach for a Maximum Rate of 10Mbps
FigureB‐4displaysabondedmulti‐pairdeploymentreachonAWG24(rates<10Mbps).
Figure B-4. Bonded Multi-pair Deployment Reach on AWG24 (rates <10Mbps)
Rate (Mbps)
0
3
6
9
2-pairs
4-pairs
6-pairs
8-pairs
45
40
35
30
25
20
15
10
Bonded
49-self reach for a min. rate of 10Mbps
Reach (kft of AWG24)
2-pairs
4-pairs
6-pairs
8-pairs
49-self reach for a max. rate of 10Mbps
Bonded
10
0
0
3
6
9
12
15
18
21
2
4
6
8
Reach (kft of AWG24)
Rate (Mbps)

ADTRAN Total Access 5000 Specifications

Interfaces

craft interface	DB-9 RS-232 Electrical Interface (Async)
admin interface	DB-9 RS-232 DTE Electrical Interface (Async with Modem Control Signals)
network management port	DB-9 RS-232 DTE Electrical Interface (Async)
ethernet interface	10Bt
external alarm inputs	16

Operating Environment

operating temperature	-40°C to +65°C
storage temperature	-40°C to +70°C
relative humidity	Up to 95%, non-condensing

Weight and Dimensions

height	9.25 in.
width	0.08 in.
depth	9.5 in.
weight	0.6 lbs.
