ADTRAN Total Access 5000 Deployment Guide

Section 2, Installation - Mount the Chassis
65K510DEP08-1A 2-7
Mount the Chassis
NOTE
Whenmountingthechassis,leavethemountingscrewslooseuntiltheSMIO3
andfanmodulehavebeeninstalled.
Thechassisisshippedwithtwomountingbracketsthatareusedtoinstallthechassiswith
eithera2‐inch,3.3‐inch,4.1‐inchor5‐inchfrontprojection.Eachbracketisattachedwithfive
screws,whicharesuppliedwiththechassis.RefertoFigure
2‐4formountinglocationsand
mountingbracketorientations.

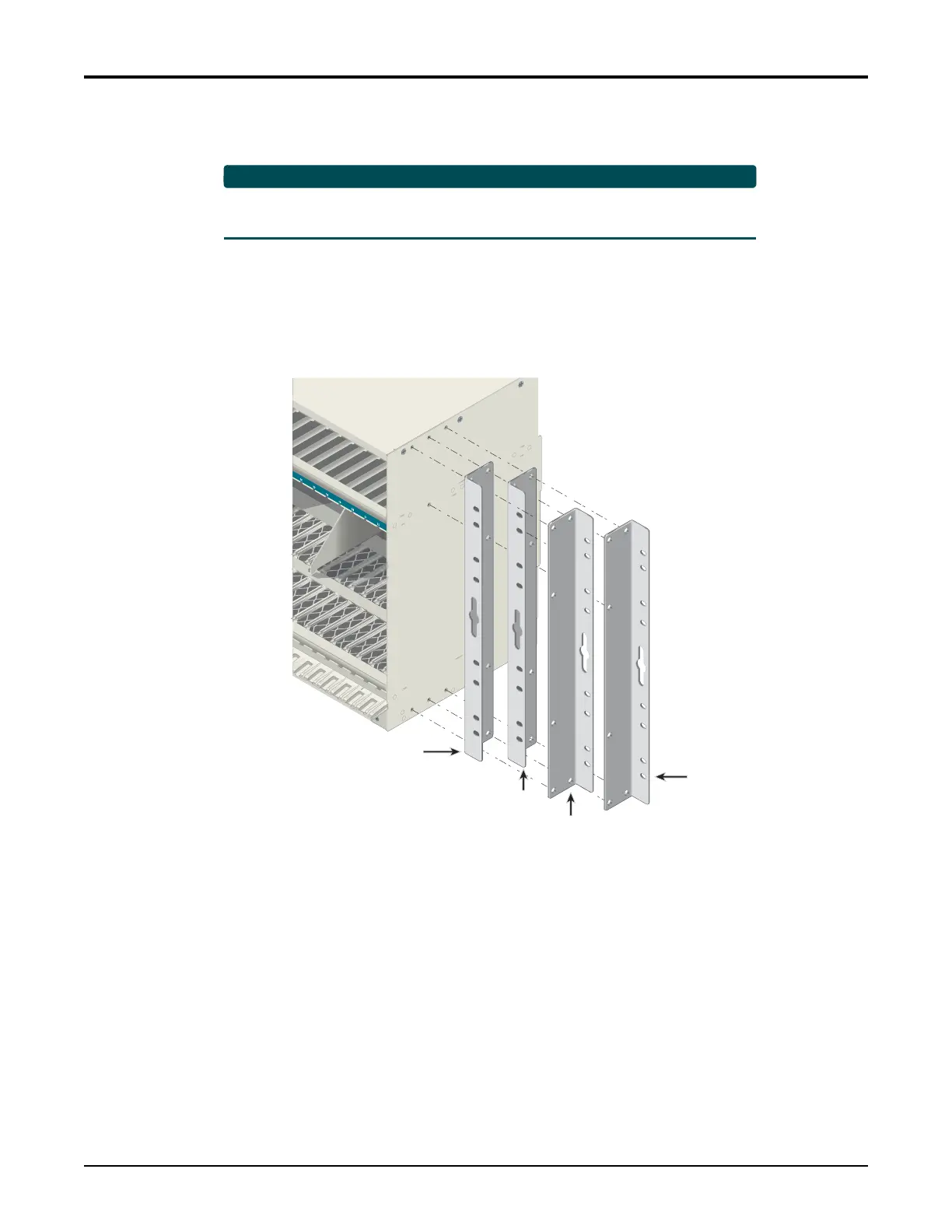

Figure 2-4. Mounting Bracket Locations
2-Inch Front
Projection
3.3-Inch Front
Projection
4.1-Inch Front
Projection
5-Inch Front
Projection

ADTRAN Total Access 5000 Specifications

Interfaces

craft interface	DB-9 RS-232 Electrical Interface (Async)
admin interface	DB-9 RS-232 DTE Electrical Interface (Async with Modem Control Signals)
network management port	DB-9 RS-232 DTE Electrical Interface (Async)
ethernet interface	10Bt
external alarm inputs	16

Operating Environment

operating temperature	-40°C to +65°C
storage temperature	-40°C to +70°C
relative humidity	Up to 95%, non-condensing

Weight and Dimensions

height	9.25 in.
width	0.08 in.
depth	9.5 in.
weight	0.6 lbs.
