ADTRAN Total Access 5000 - Figure 2-1. Installing the SMIO3

Total Access 5000 Business Services Deployment Guide
2-4 65K510DEP08-1A

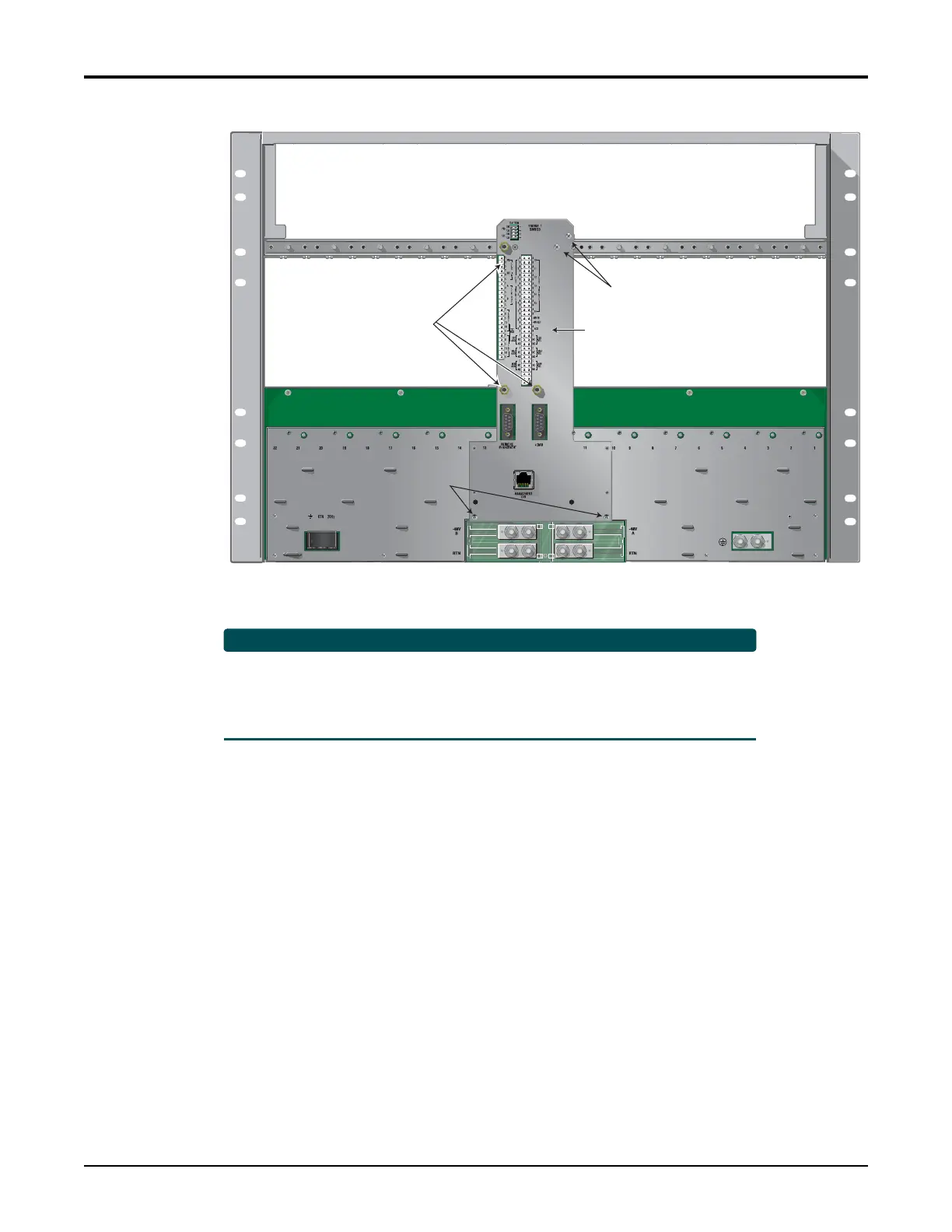

Figure 2-1. Installing the SMIO3
NOTE
Beforeinsta llingthechassisinaCOframe,thepaintmustberemovedfrom
thesurfaceoftheCOframewherethemountingbracketscomeincontact
withthatframe.Antioxidantsmustbeappliedtothese areasafterthepain t
hasbeenremoved.
SMIO3
Stand-offs
3/4” Screws
3/8” Screws
