Ethernet Ring Diagrams
ThefollowingdiagramsdisplaytwodifferentRPRconfigurations.

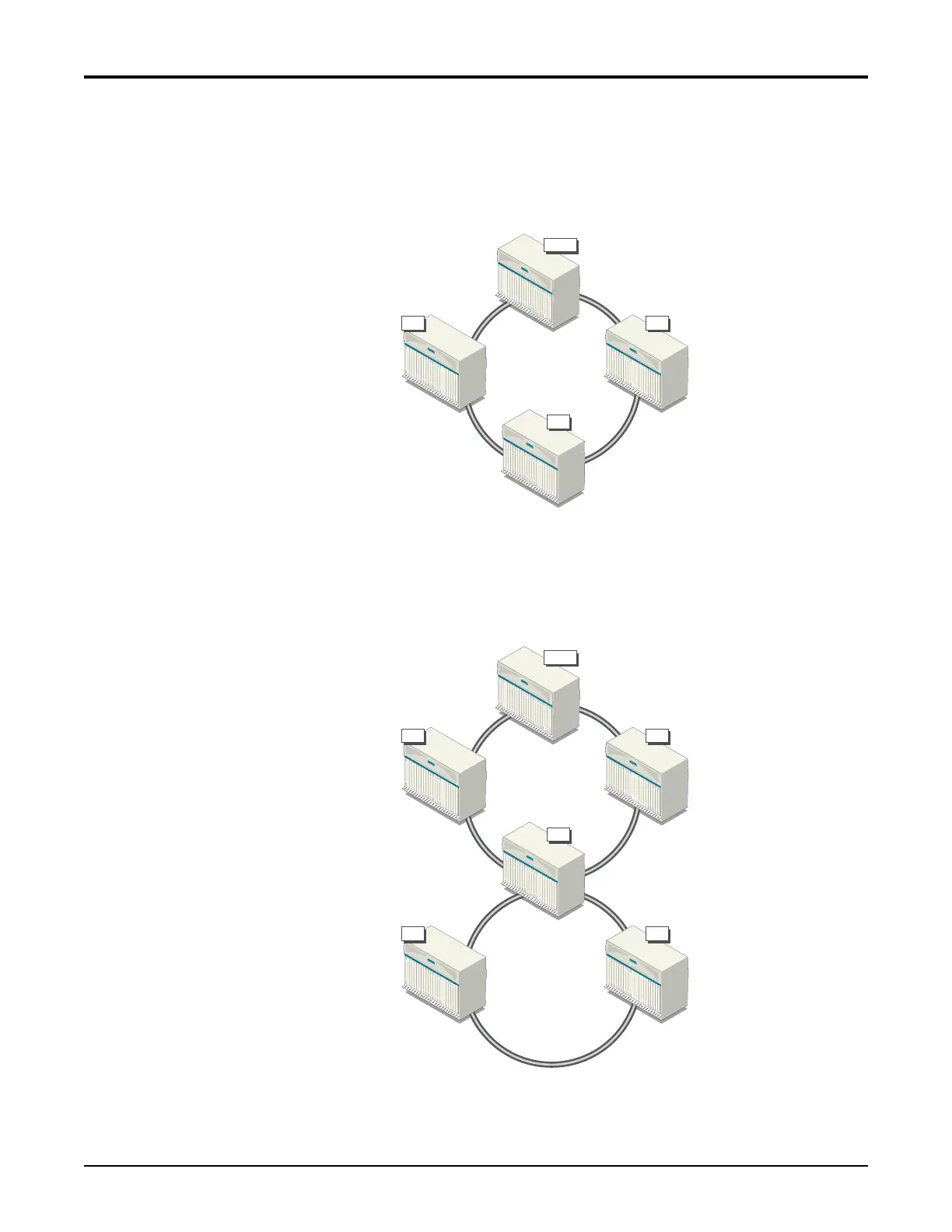

FigureL‐1displaysanRPRring.TheCOTNodeactsastheHubNodefortheRPRring.
Figure L-1. RPR Ring
FigureL‐2displaystwoRPRrings.TheCOTNodeactsastheHubNodefortheRPRring,and
oneRTNodealso
actsastheHubNodeforthesecondRPRring.
Figure L-2. Two RPR Rings
COT
RT RT
RT
RPR
COT
RT RT
RT RT
RT
RPR
RPR

ADTRAN Total Access 5000 Specifications

Interfaces

craft interface	DB-9 RS-232 Electrical Interface (Async)
admin interface	DB-9 RS-232 DTE Electrical Interface (Async with Modem Control Signals)
network management port	DB-9 RS-232 DTE Electrical Interface (Async)
ethernet interface	10Bt
external alarm inputs	16

Operating Environment

operating temperature	-40°C to +65°C
storage temperature	-40°C to +70°C
relative humidity	Up to 95%, non-condensing

Weight and Dimensions

height	9.25 in.
width	0.08 in.
depth	9.5 in.
weight	0.6 lbs.
