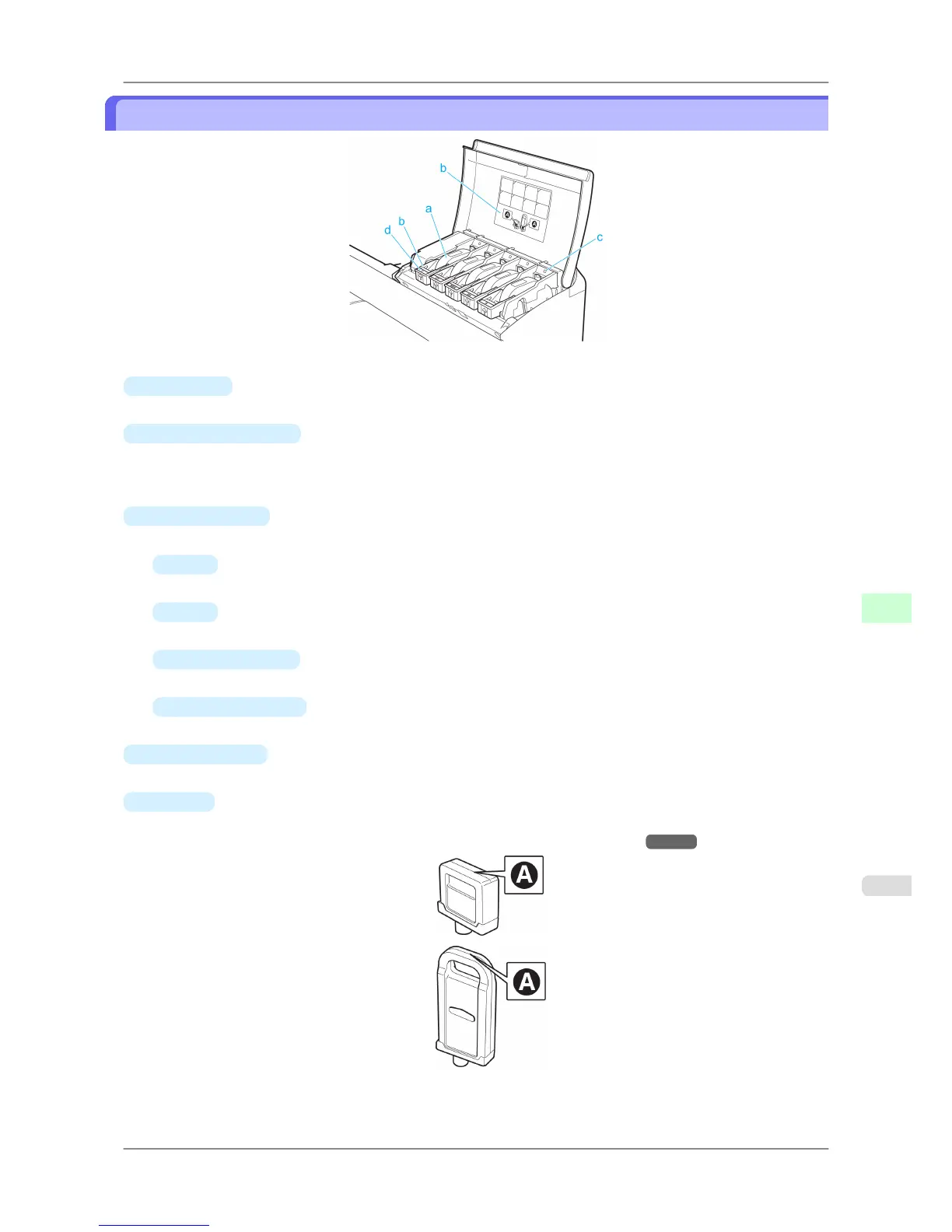

Canon iPF825 - Ink Tank Cover (Inside)

Ink Tank Cover (Inside)
Note: The figure shows the printer as loaded with 700 ml (23.7 fl oz) Ink Tank.
a.
Ink Tanks
Cartridges of ink in various colors.
b.
Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and lower the lever when replacing an Ink Tank. To
open
it, lift the stopper of the lever until it stops, and then push it down toward the front. To close it, push it down
until it clicks into place.
c.
Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
•
On
The Ink Tank is installed correctly.
•
Off
No Ink Tank is installed, or the ink level detection function is disabled.
•
Flashing Slowly
Not much ink is left.
•
Flashing Rapidly
Ink tank is empty.
d.
Ink Color Label
Load an Ink Tank that matches the color and name on this label.
e.
Ink Set
An Ink Tank that can be used in the printer is labeled with a white letter A
in a black circle on the side. When
purchasing an Ink Tank, make sure an A is printed on the label. (See "Ink Tanks.")
→P.741
