①

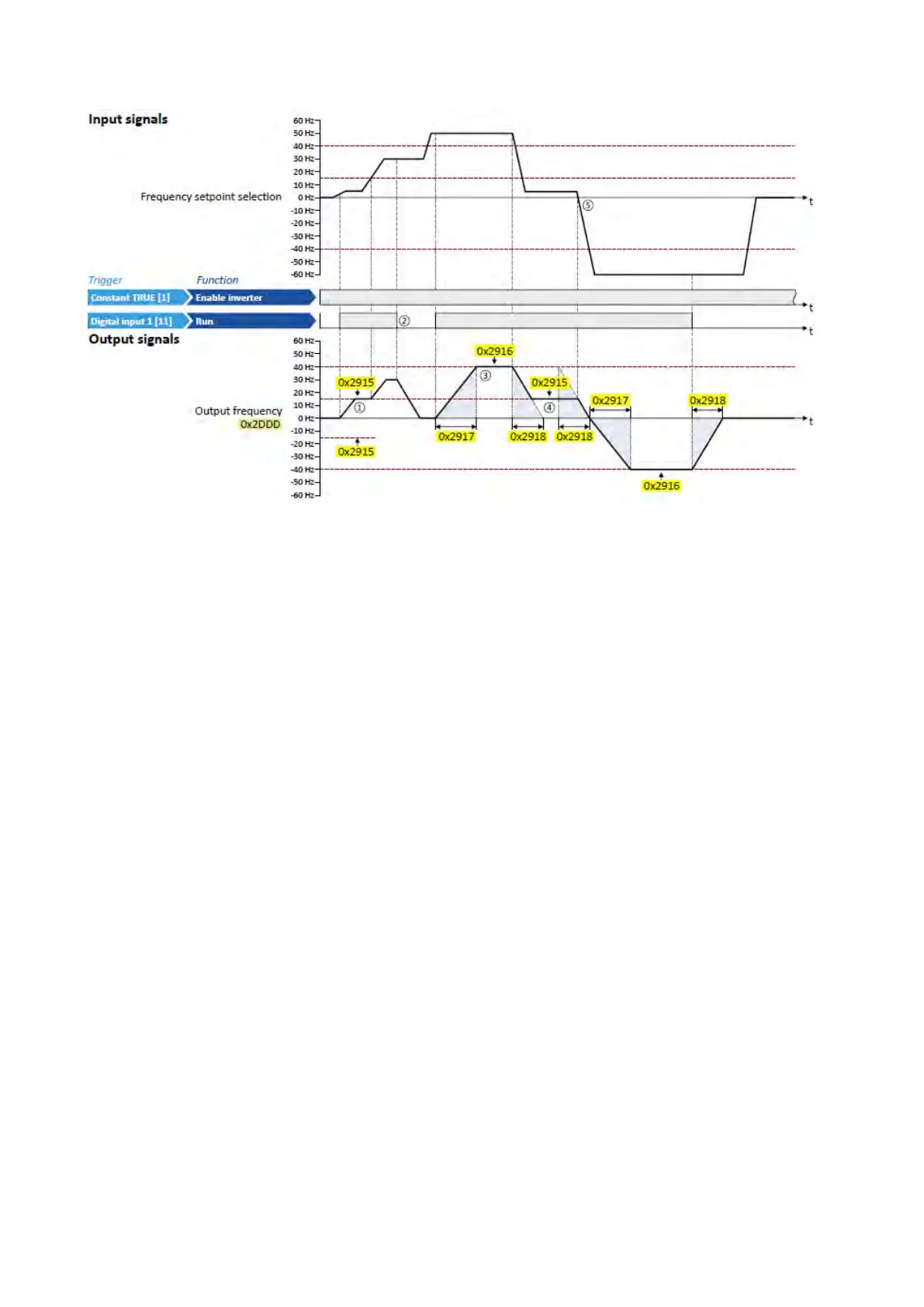

After a start command, the motor is accelerated to the minimum frequency. This is also the case if the setpoint selection is = 0 Hz. If
the setpoint exceeds the minimum frequency, the ramp generator follows the setpoint.
②
If the start command is deactivated again, the motor is stopped with the stop method set in 0x2838:003 (P203.03) (here: Standard ramp).
③
The motor is accelerated to the set maximum frequency.
④
If the setpoint falls below the minimum frequency, it is decelerated up to the minimum frequency.
⑤
In case of a sign reversal of the setpoint, a change of direction of rotation takes place, minimum and maximum frequency, however,
continue to apply.
