Internal signal flow

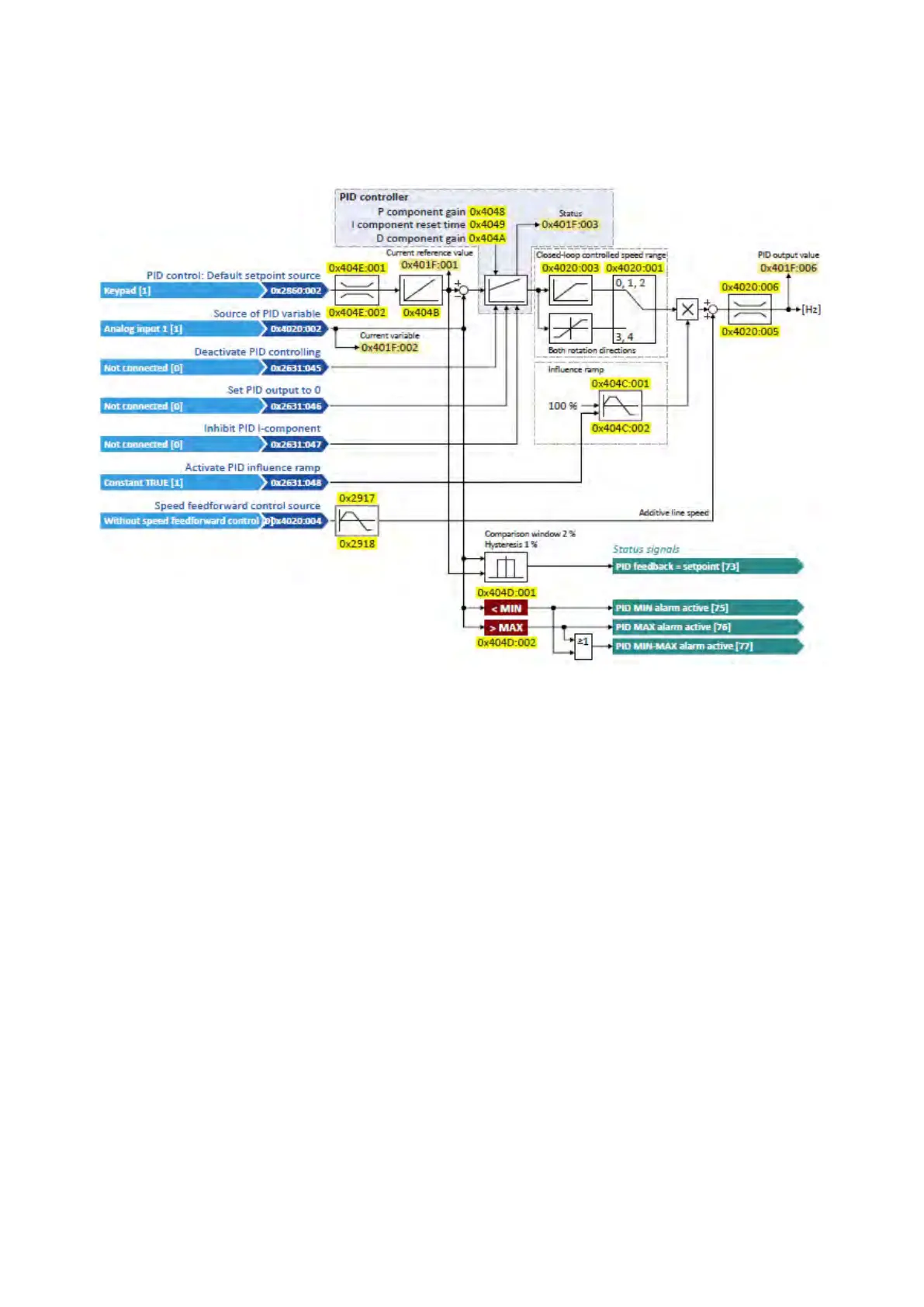

The following illustration shows the internal signal flow of the process controller (without
the additional functions "idle state" and "rinsing function"):
Control functions
The flexible I/O configuration serves to configure different control functions for the
process controller:
• 0x2631:045 (P400.45): Deactivate PID controller
• 0x2631:046 (P400.46): Set process controller output to 0
• 0x2631:047 (P400.47): Inhibit process controller I-component
• 0x2631:048 (P400.48): Activate process controller influence ramp
For details see
chapter "Process controller function selection".
