412 01-6203-01R3, CG Drives & Automation
The status signals can be assigned to digital
outputs
.
Configuration of digital outputs
429

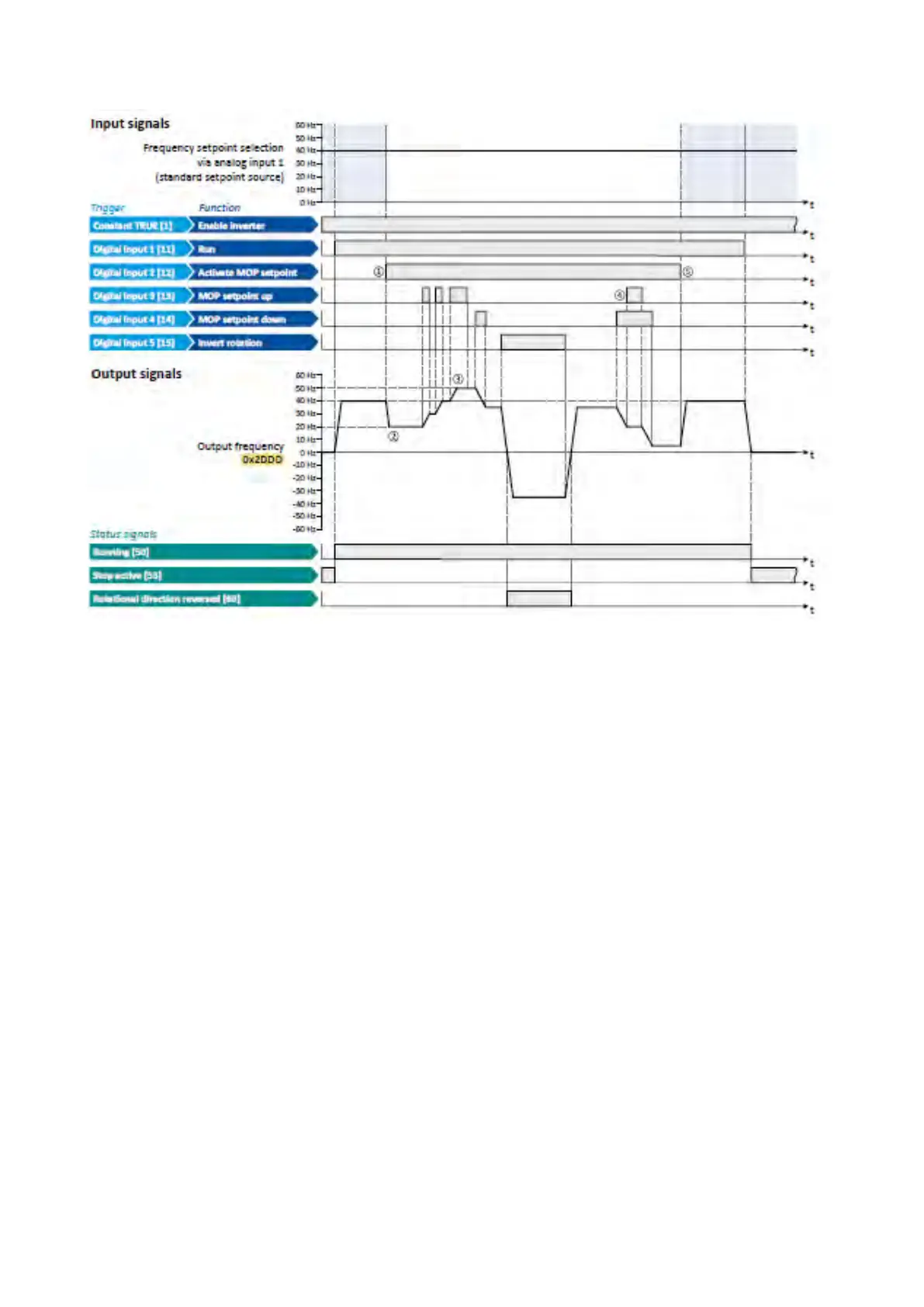

① Change-over from analog input 1 (standard setpoint source) to MOP setpoint.
② The initial value for the motor potentiometer function depends on the setting in
0x4003 (P413.00).
In this example, the "starting value" set in 0x4004:001 (P414.01) is used (here: 20
Hz).
③ The MOP setpoint is maximally increased to the maximum frequency set in 0x2916
(P211.00) (here: 50 Hz).
④ If "MOP setpoint up" and "MOP setpoint down" are requested at the same time,
the MOP setpoint remains unchanged.
⑤ Change-over from MOP setpoint back to analog input 1 (standard setpoint source).
