EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly 150 Paper Cassette 178
Confidential
7. Remove the two screws (gold, tapping, 8mm) in each of the left and right sides and
the six screws (gold, tapping, 8mm) in the rear side, which secure the HOUSING
TOP 150 to the HOUSING BASE 150.
8. Release the four hooks of the HOUSING TOP 150, and remove the HOUSING
TOP 150 and HOUSING EXTENSION 150 from the HOUSING BASE 150.
9. Remove the four screws (gold, tapping, 6mm) securing the COVER EXTENSION
to the HOUSING EXTENSION 150.
10. Remove the COVER EXTENSION from the HOUSING EXTENSION 150.
11. Turn the RACK SIZE in the direction of the arrow, and remove the RACK SIZE
from the HOUSING EXTENSION 150.

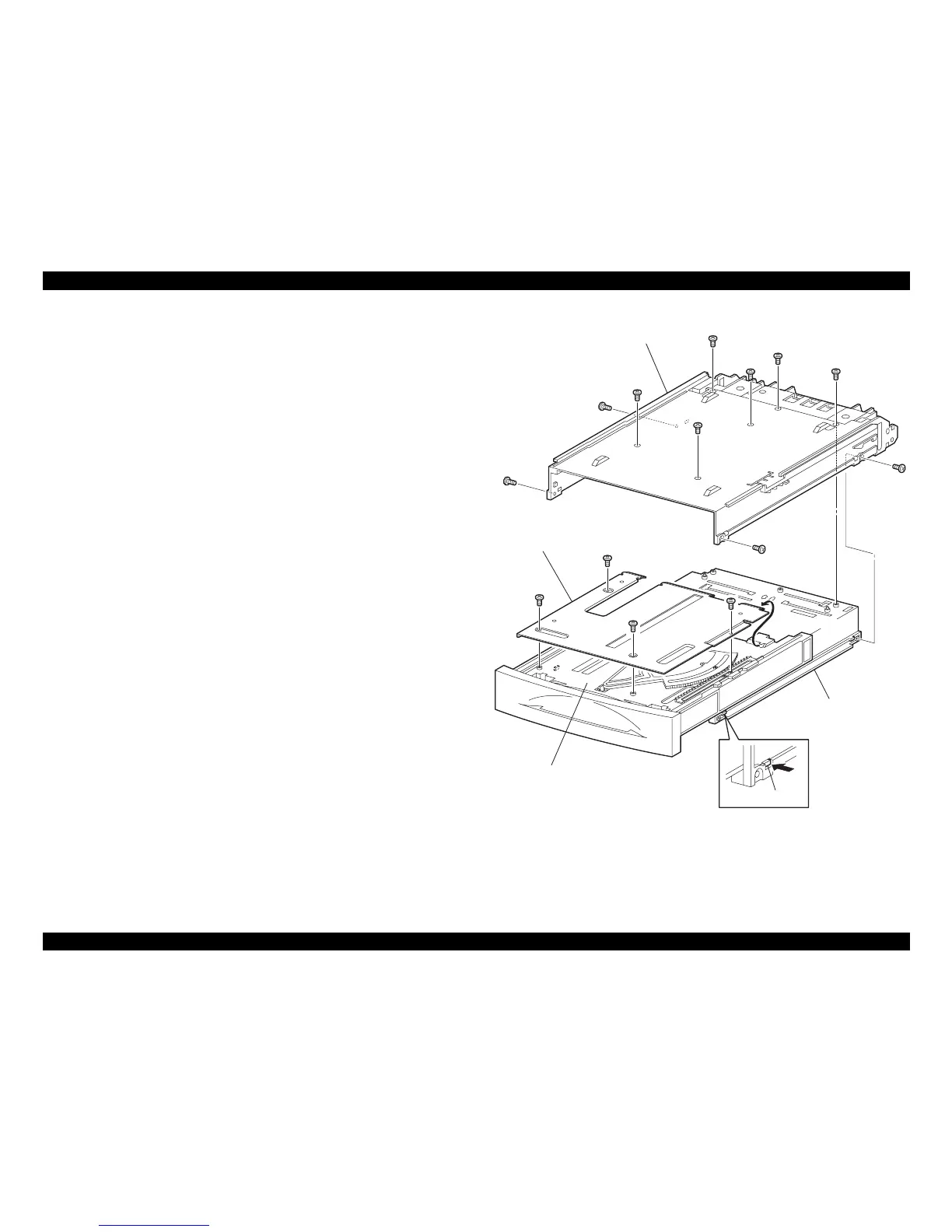

Figure 4- 13. RACK SIZE Removal
HOUSING TOP 150
HOUSING EXTENSION 150
HOUSING BASE 150
COVER EXTENSION
JG3008AA
HOOK
7)
7)
7)
9)
8)
(NOTE 2)
