EPSON EPL-N3000/AcuLaser M4000N Revision C
Disassembly and Assembly Option 550 Paper Feeder 324
Confidential
Installation
1. After inserting the hook at the front end of the RACK SIZE into the groove of the
HOUSING EXTENSION 550, turn it in the direction opposite to the arrow.
2. As shown in the figure, match the end of the RACK SIZE to the ∇ mark of the
HOUSING EXTENSION 550, and install the RACK SIZE to the HOUSING
EXTENSION 550.
3. Install the COVER EXTENSION to the HOUSING EXTENSION 550 with the
four screws (gold, tapping, 6mm).
4. With the LINK SW SIZE 1-550, LINK SW SIZE 2-550 and LINK SW SIZE 3-
550 of the HOUSING BASE 550 pushed to the outside as shown in the figure,
assemble the HOUSING EXTENSION 550 into the HOUSING TOP 550 and
HOUSING BASE 550.

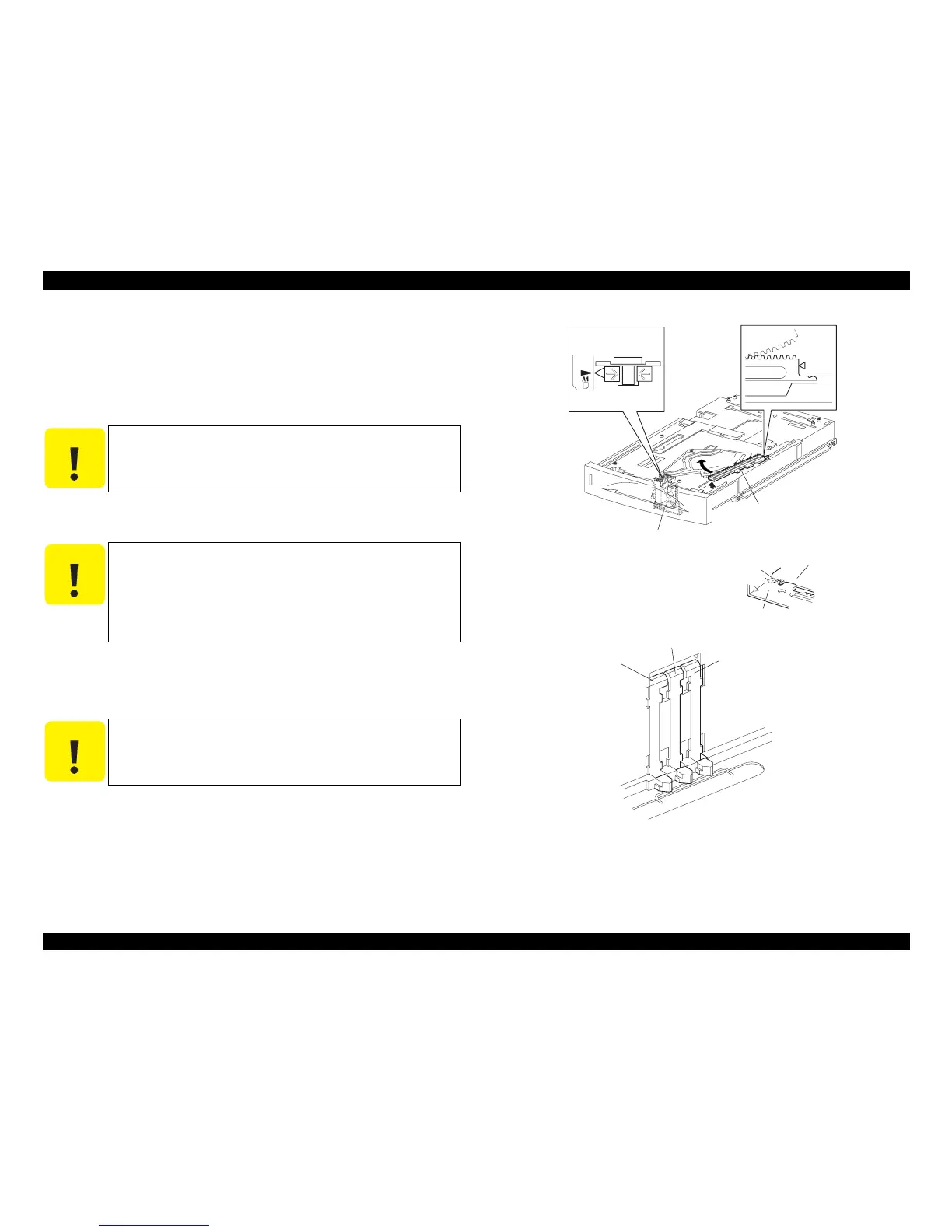

Figure 4- 129. RACK SIZE Installation
C A U T I O N
Before installing the RACK SIZE, pull out the GUIDE ASSY END
550 to the full. (NOTE 1)
C A U T I O N
 Make sure that the COVER EXTENSION is located under the
three claws of the HOUSING EXTENSION550. (NOTE 2)
(
p.323)
 Always use the securing screws of 6mm length. If they are of
8mm length, the HOUSING EXTENSION 550 will not operate
smoothly and the LOCK EXTENSION will not operate
properly.
C A U T I O N
Insert the two claws at the front end of the PLATE ASSY BTM into
the hooks of the HOUSING TOP 550. (NOTE 3) (
p.322)
RACK SIZE
JG3520AB
GUIDE ASSY END 550
NOTE 1
JG3210AA
LINK SW SIZE 1-550
LINK SW SIZE 2-550
LINK SW SIZE 3-550
GUIDE ASSY SD L550
WHEN ASSEMBLING
CLAW
HOUSING TOP550
12)
