EPSON EPL-N3000/AcuLaser M4000N Revision C
Appendix Wiring Diagrams and Signal Information 422
Confidential
§3 Imaging Cartridge, BTR ASSY

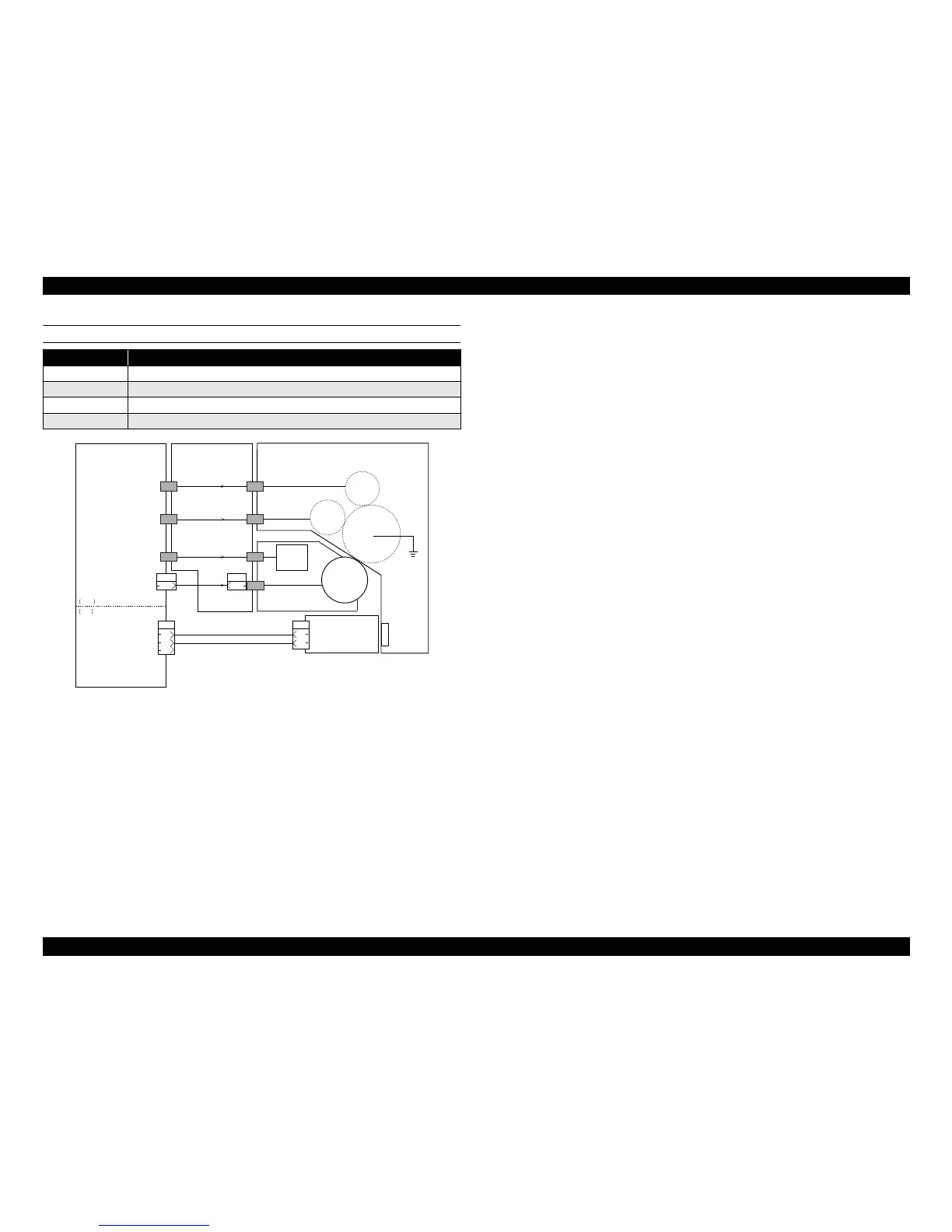

Figure 7-10. Components Connection Wiring Diagram 3
Signal Line Name Description
DB Output from the HVPS to the Mag Roll. (Development bias)
CR Output from the HVPS to the BCR.
DTS Output from the HVPS to the Detack Saw.
TR Output from the HVPS to the BTR.
Imaging Cartridge GUIDE ASSY CRU R
PL 8.1.25
HVPS/ MCU
PL 12.1.19
Drum
Detack
Saw
BTR ASSY
PL 8.1.21
Mag
Roll
BCR
PWBA ASSY ANT
PL8.1.23
DB
CR
DTS
TR
ANT IN
ANT OUT
HARNESS ASSY ANT
PL 8.1.24
BTR
HVPS
MCU
P/J 31
P/J150
1
2
P/J15
2
3
1
1
P/J 310
1
