1-8 Phaser 5500 Printer Service Manual
Stacker / Finisher
The Stacker/Finisher increases the output capacity of the printer by 3,500 sheets.
Printer output is directed to the Stacker/Finisher by way of Exit 1 and the Horizontal
Transport. With Exit 2 installed, the top surface of the Horizontal Transport serves as
the top tray and paper output capacity remains at 500 sheets. Depending on the level
of Stacker/Finisher options and job specifications, as paper enters the Stacker/
Finisher it is punched, stapled, offset and stacked. Control signals reach the Stacker/
Finisher through a single connector. Power is supplied from the printer’s AC
Accessory Panel.

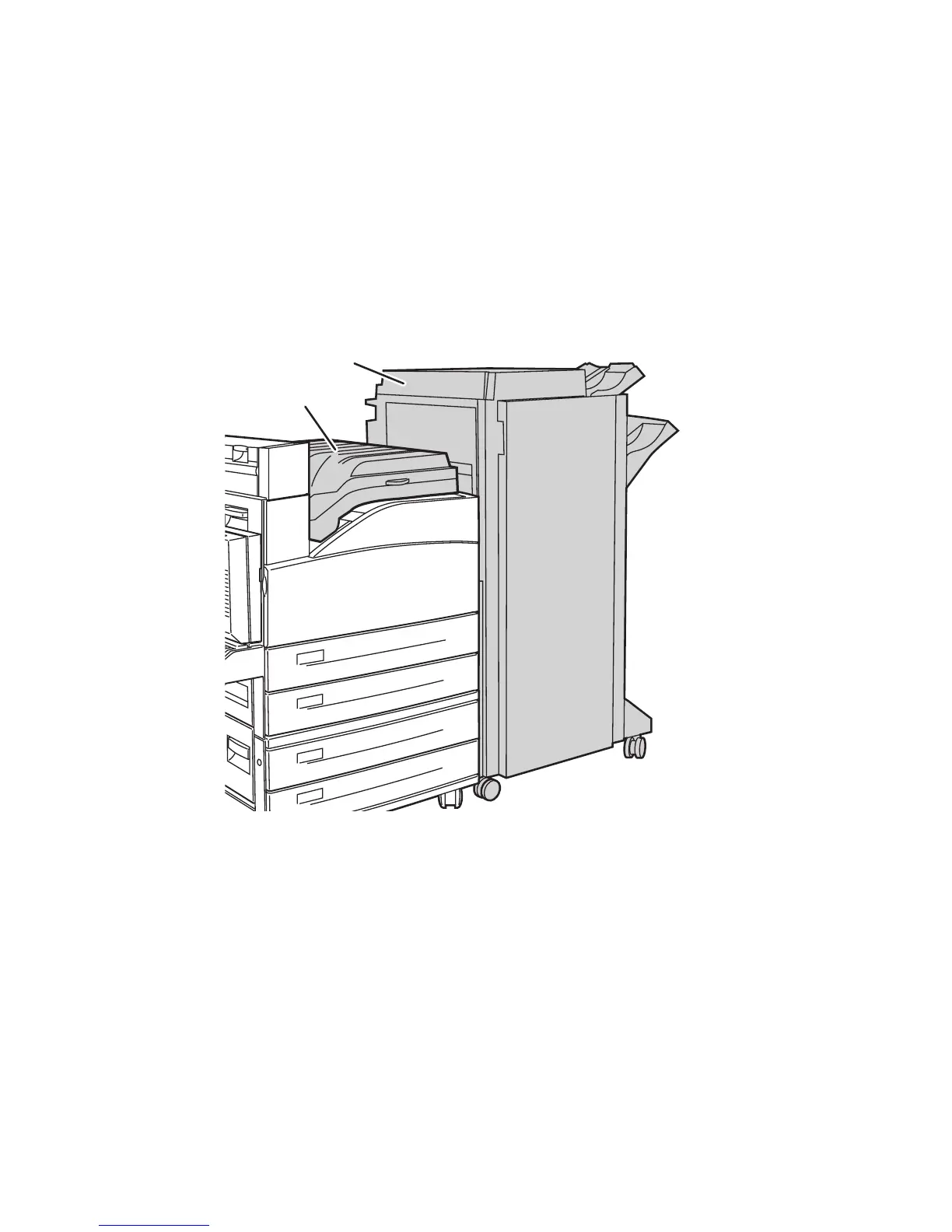

1. Horizontal Transport 2. Stacker/Finisher
s5500-009
