8-80 Phaser 5500 Printer Service Manual
Exit 1 Offset Motor
1. Remove the Upper Rear Cover (page 8-15).
2. Remove the Top Rear Cover (page 8-6).
3. Open Door A.
4. Remove the Exit 1 Top Cover (page 8-18).
5. Open the Front Door.
6. Remove the Front Left Cover (page 8-5).
7. Remove the Exit Transport Assembly (page 8-78).
PL6.2.3
8. Disconnect the connector from the Offset Motor.
9. Remove the two standard, Phillips-head screws securing the Offset Motor to the
Exit.

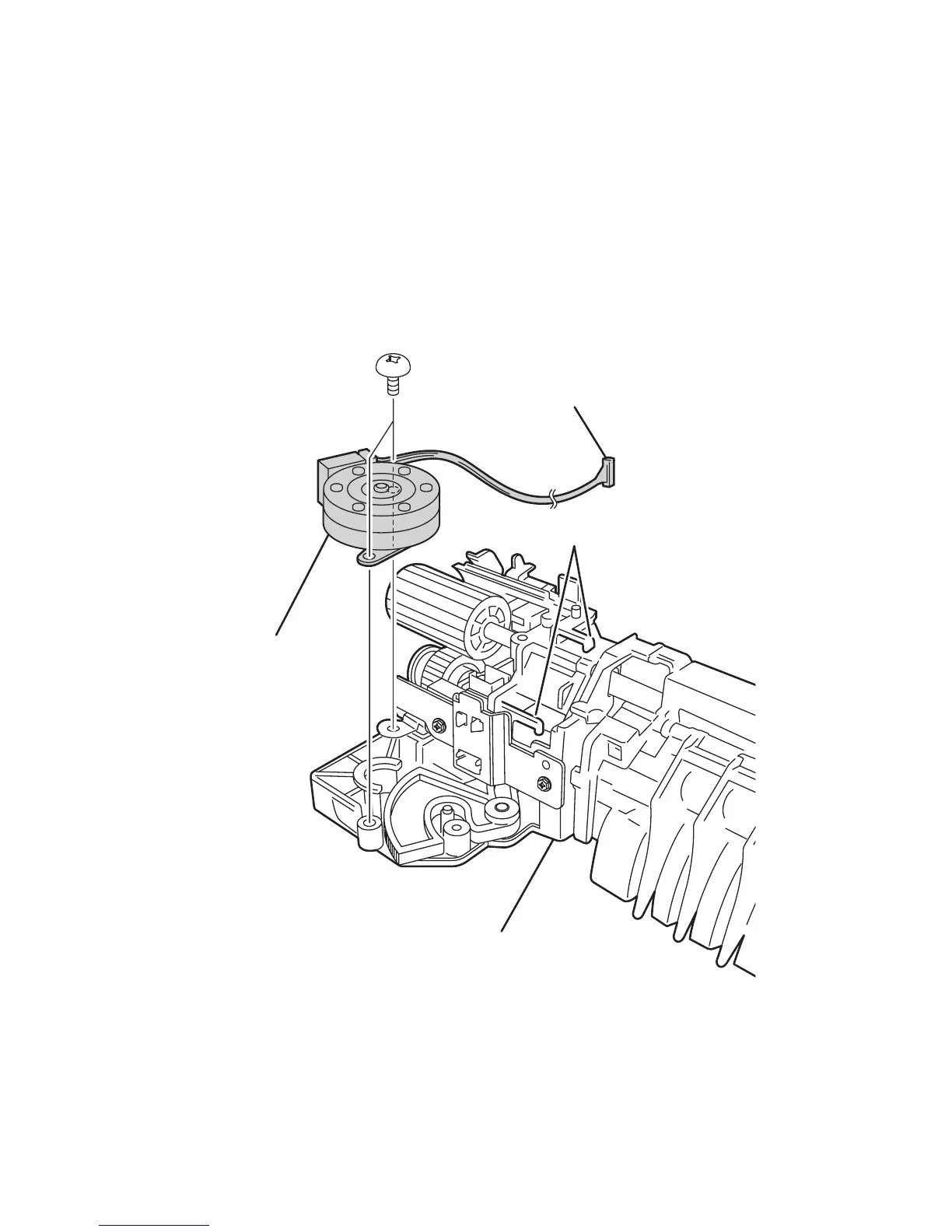

Connector
Offset Motor
Clamps
Exit Transport
Assembly
s5500-169
