5-12 Phaser 5500 Printer Service Manual
Skew
Skew Troubleshooting Procedure
Actions and Questions Yes No
1. Select Troubleshooting, then press the OK button.
2. Scroll to Print Quality Problems, then press the OK
button.
3. Select Test Prints, then press the OK

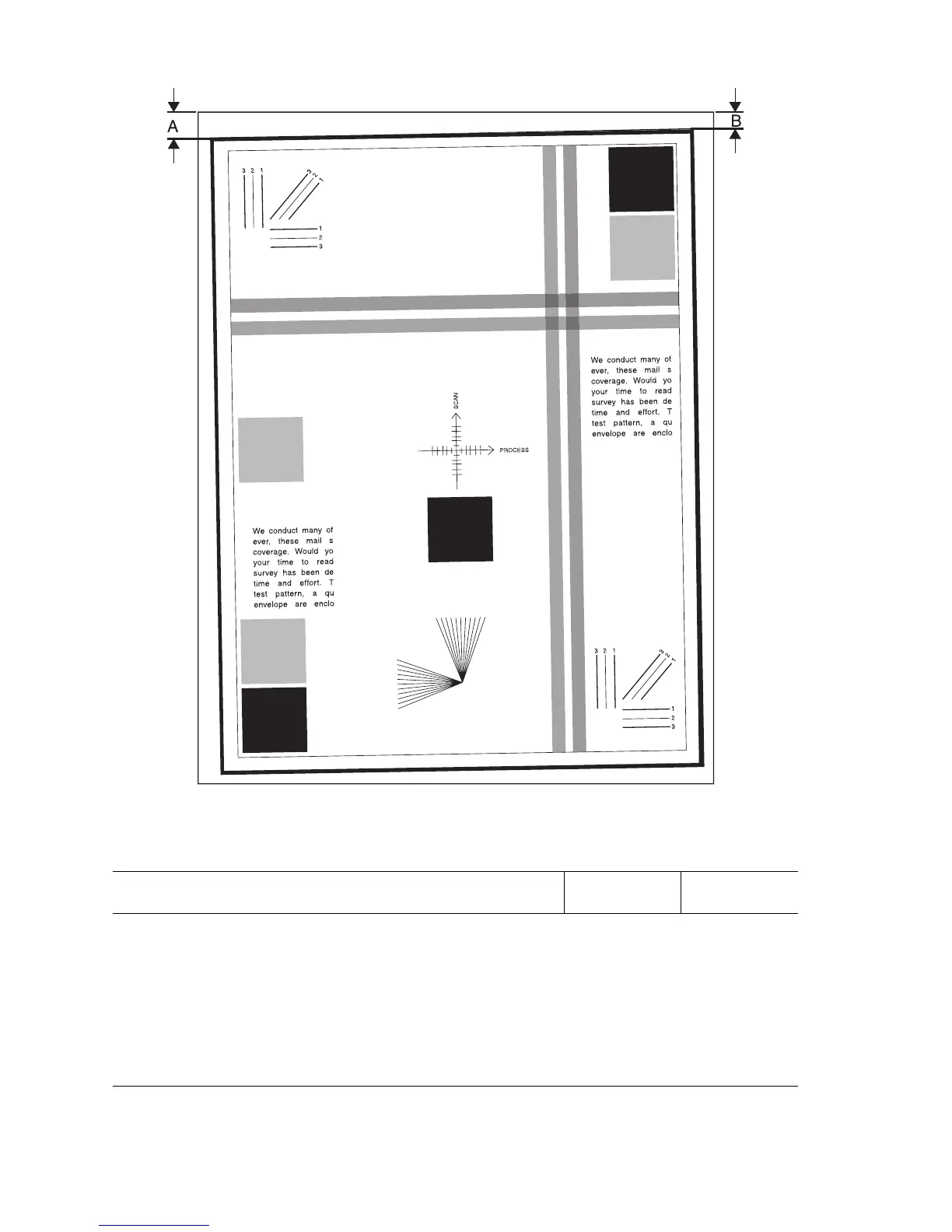

4. Measure the dimensions ‘A’ and ‘B’ on two consecutive
test patterns.
Is the difference between ‘A’ and ‘B’ 1.25 mm or less?
The printed
test patterns
meet the
Skew
specifications.
Go to
"Skips
and Smears"
on page 5-47.
Go to
"Skewed
Image" on
page 5-44.
s5500-055
Lead Edge of Paper
Test P
rint
Test Print
Phaser5500-040302-2-
L
Phaser5500-040302-2-L
8.5x11 (LEF O
nly)
8.5x11 (LEF Only)
LEA
D
E
D
G
E
