8-74 Phaser 5500 Printer Service Manual
8. Remove the Toner Dispense Assembly (page 8-71).
PL5.1.11
9. Disconnect the connector from the Toner Dispense Motor.
10. Remove the four screws securing the Toner Dispense Motor to the frame and
remove.
Laser Assembly
1. Remove the Top Cover (page 8-7).
2. Remove the Front Door (page 8-8).
3. Remove the Drum Cartridge.
4. Remove the Toner Cartridge.
5. Remove the Inner Main Cover (page 8-9).

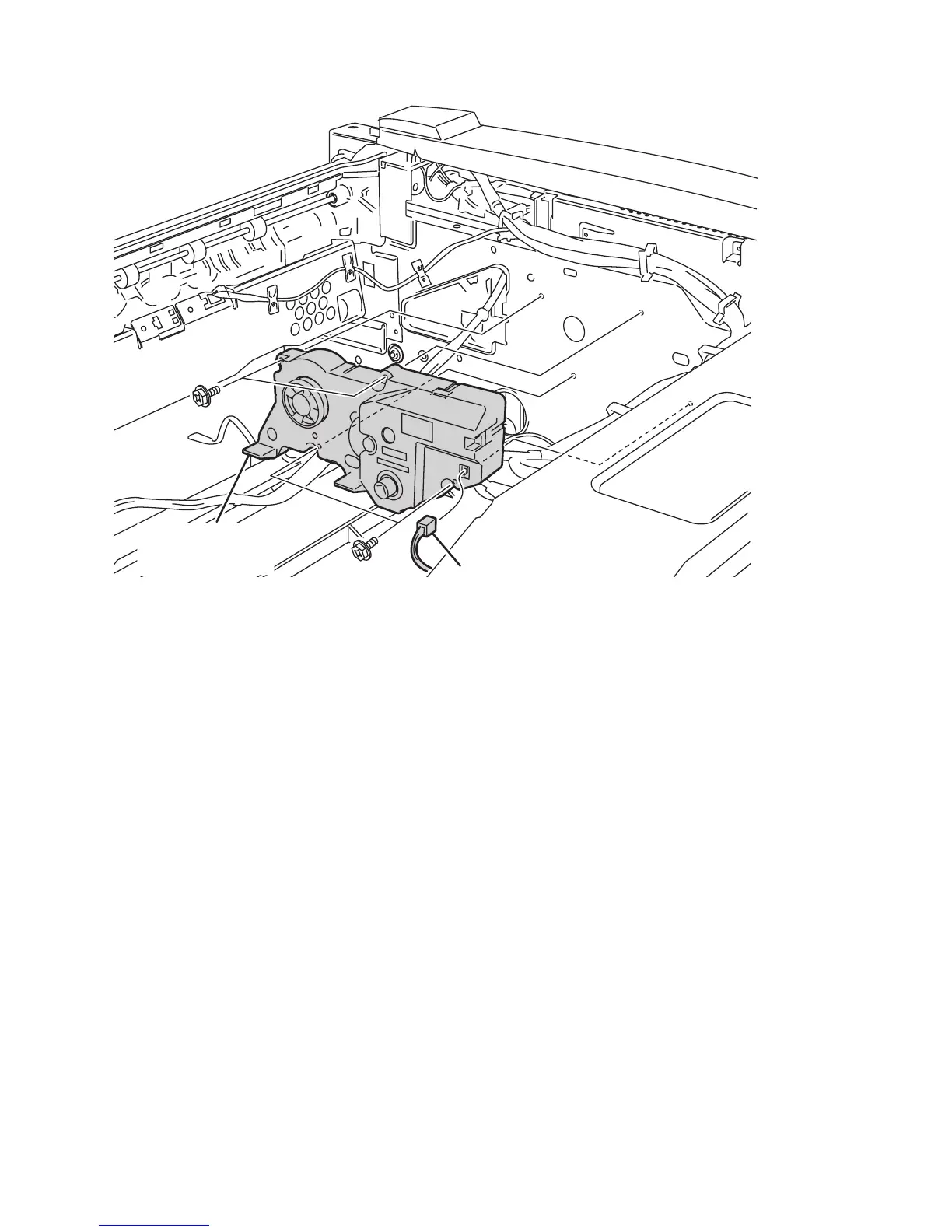

Connector
s5500-162
Toner Dispense
Motor
