FRU Disassembly 8-39
Retard Pad
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
3. Remove the Feed Roller (page 8-38).
PL3.2.12
Caution
The Retard pad springs are easily lost. Grip each spring firmly when removing
them. The Retard Pad is held down by the force of the Feed Roller.

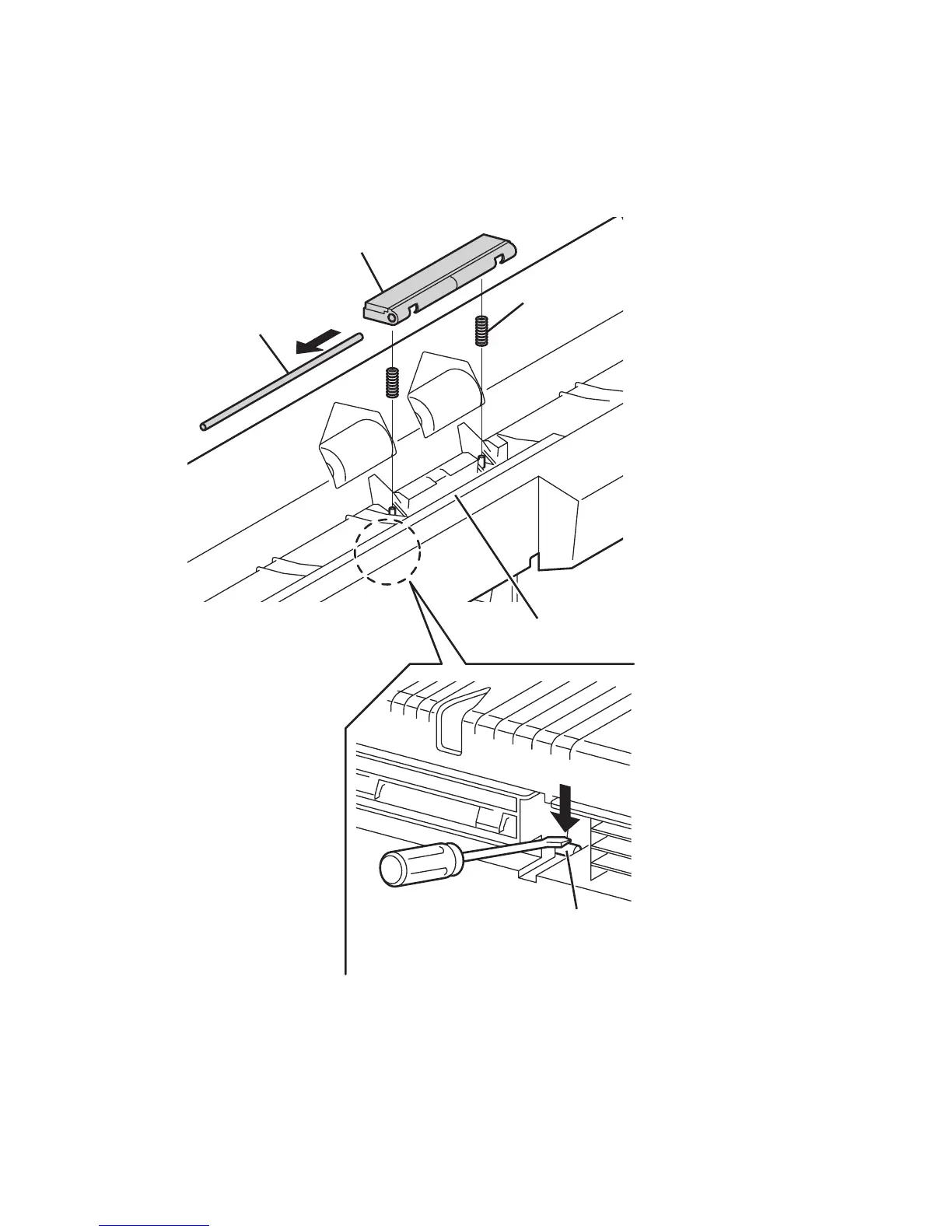

4. Remove two Pad Springs under the Retard Pad.
5. Remove the Retard Pad and the Retard Shaft by moving it in the direction of the
arrow, from the backside.
Retard Shaft
Retard Shaft
Retard Pad
Pad Spring
Lower Frame
s5500-134
To Next Page
