FRU Disassembly 8-5
Print Engine Covers

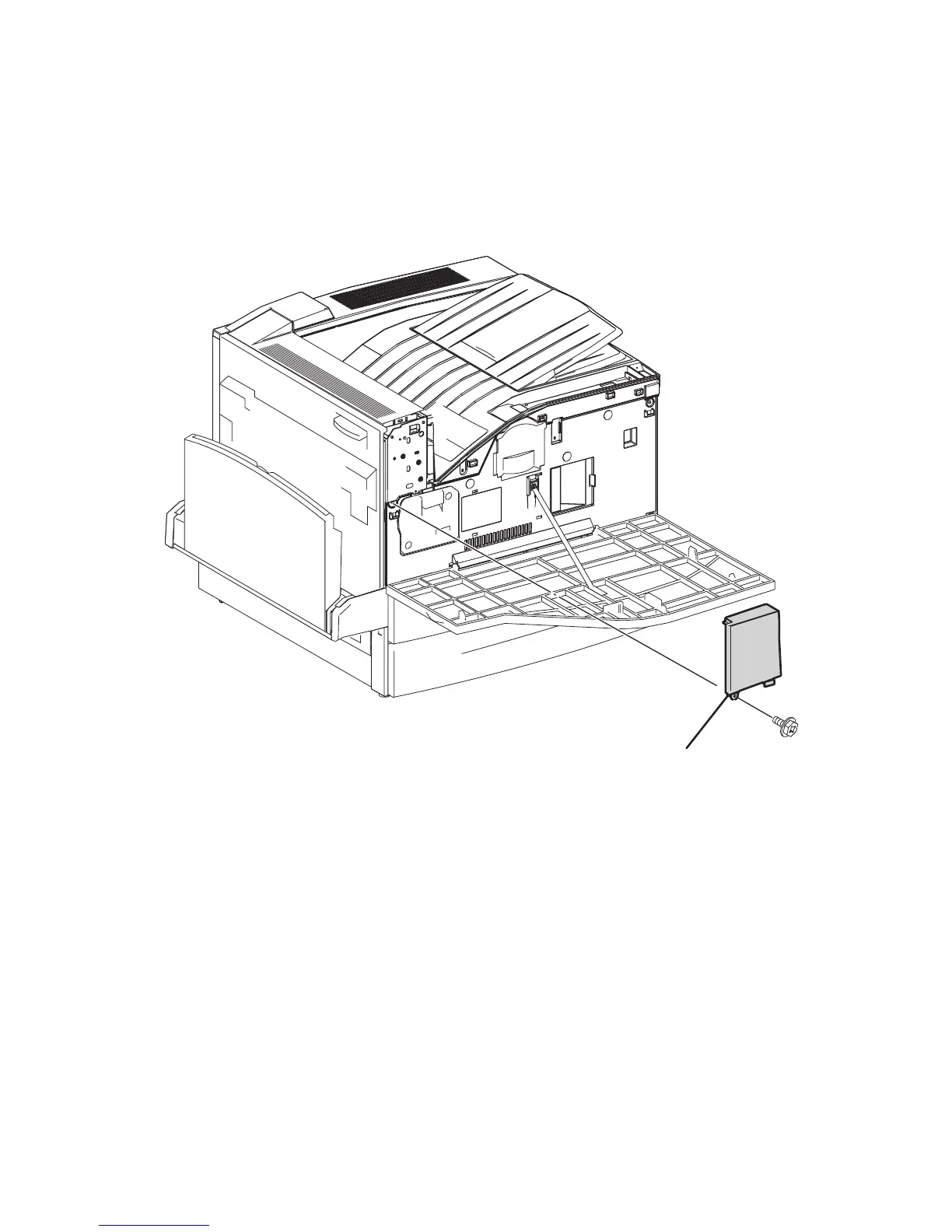

Front Left Cover
1. Open the Front Door.
PL1.1.2
2. Remove the one screw securing the Front Left Cover.
3. Remove the Front Left Cover.
Front Left Cover
s5500-076
