FRU Disassembly 8-93
AC Accessory Panel
1. Remove the I/P Board Cover (page 8-14).
2. Remove the Upper Rear Cover (page 8-15).
3. Remove the Lower Rear Cover (page 8-16).
4. Remove the Top Cover (page 8-7).
5. Remove the Upper Right Cover (page 8-11).

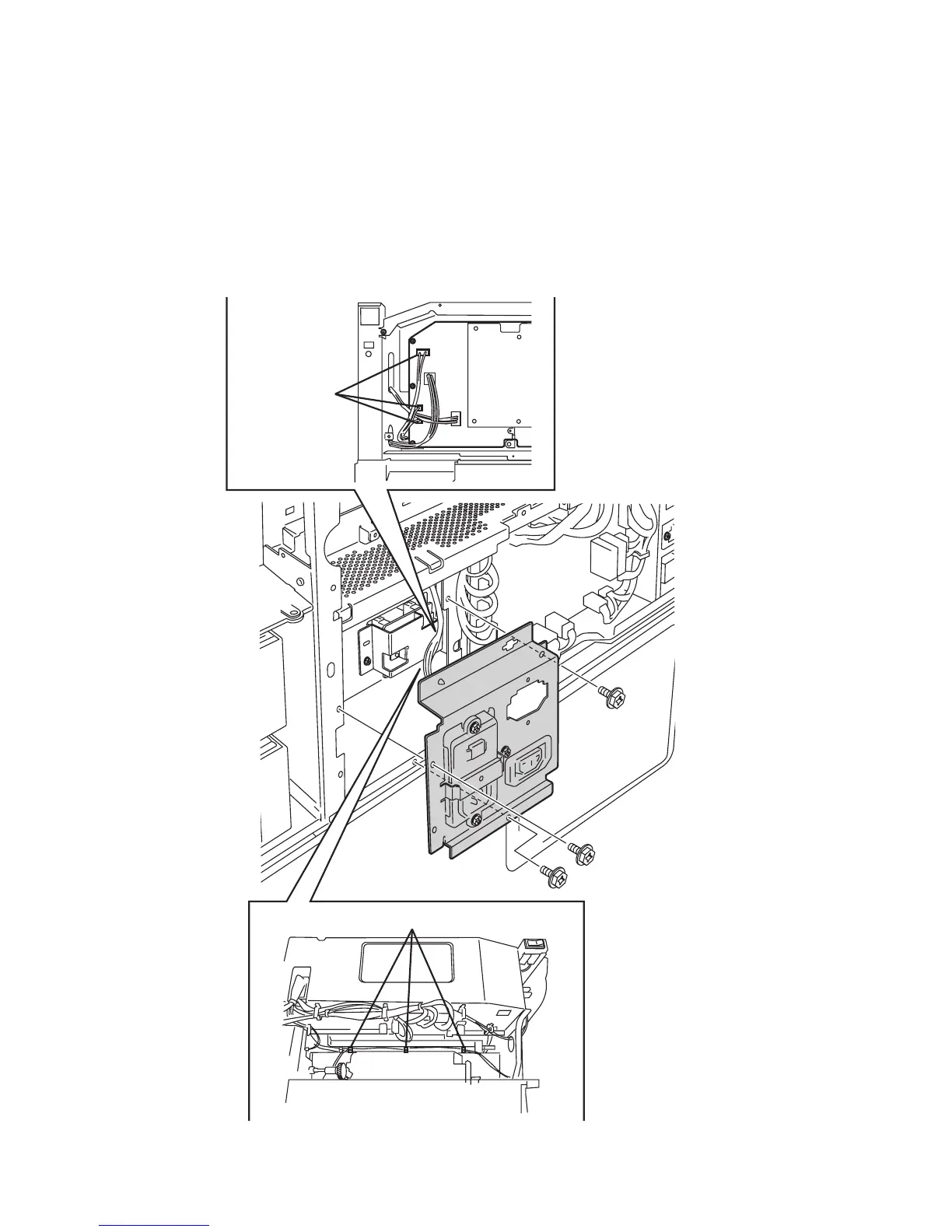

PL8.1.10
RIGHT VIEW
s5500-187
Connectors
Harness Clamps
