Fuji Xerox Phaser 5500 User Manual

FRU Disassembly 8-81
Offset Home Position Sensor
1. Remove the Upper Rear Cover (page 8-15).
2. Remove the Top Rear Cover (page 8-6).
3. Open Door A.
4. Remove the Exit 1 Top Cover (page 8-18).
5. Open the Front Door.
6. Remove the Front Left Cover (page 8-5).
7. Remove the Exit Transport Assembly (page 8-78).
PL6.2.5
8. Remove the Exit 1 Offset Motor.
9. Remove the two screws securing the sensor bracket to the Exit Transport
Assembly.
10. Release the three hooks securing the Offset Home Position Sensor to the sensor
bracket.
11. Remove the Offset Home Position Sensor.

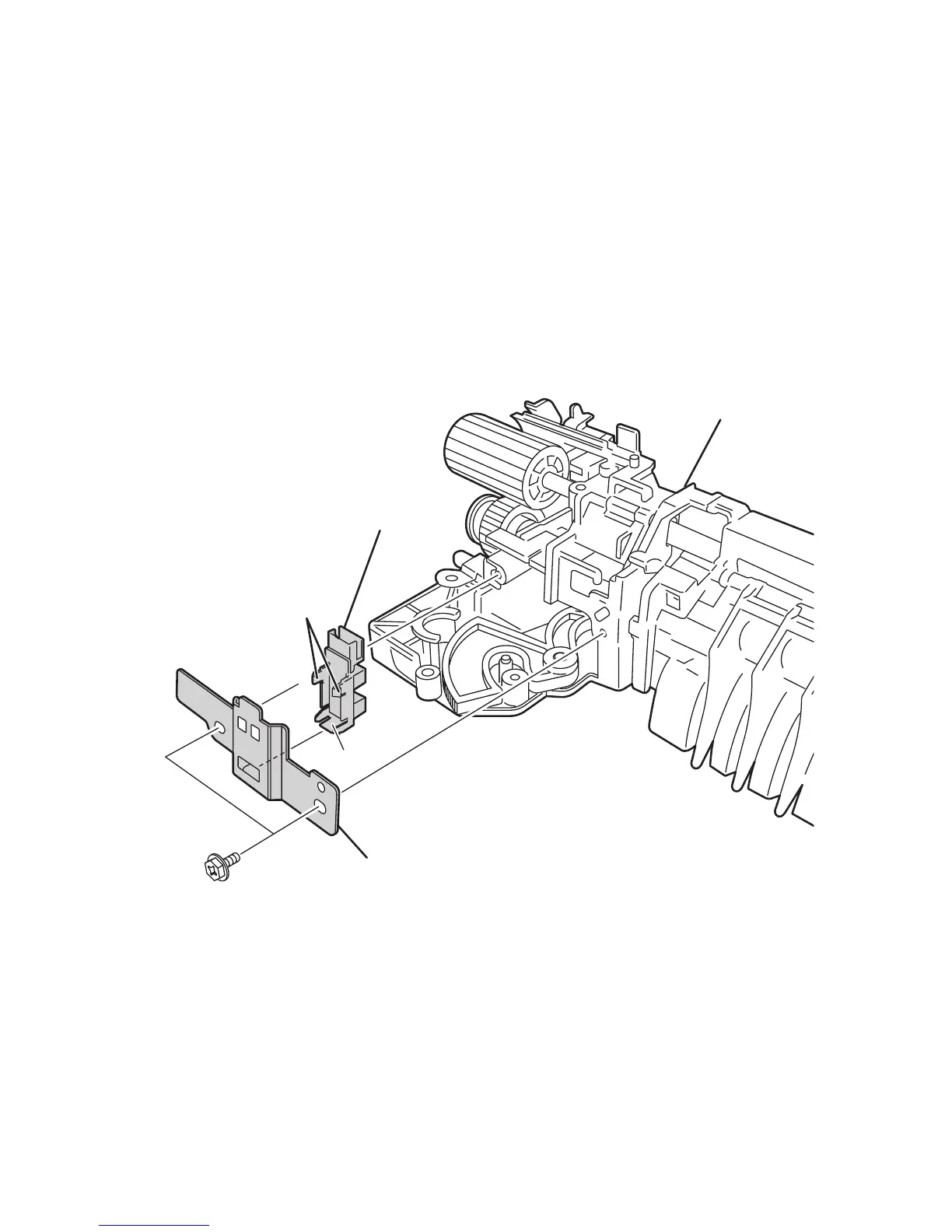

Offset Home
Position Sensor
Hooks
Hook
Sensor Bracket
Exit Transport Assembly
s5500-170
