8-24 Phaser 5500 Printer Service Manual
5. Remove the Tray 2 Feeder (page 8-20) or Tray 3 Feeder (page 8-21).
PL2.3.2
6. Disconnect the connector from the Feed/Lift Motor.
7. Remove the two Phillips screws securing the Feed/Lift Motor to the Feeder.
8. Remove the Feed/Lift Motor.
Tray 2 and 3 No Paper Sensor
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
3. Remove Door A (page 8-46).
4. Remove the Take Away Bracket (page 8-40).

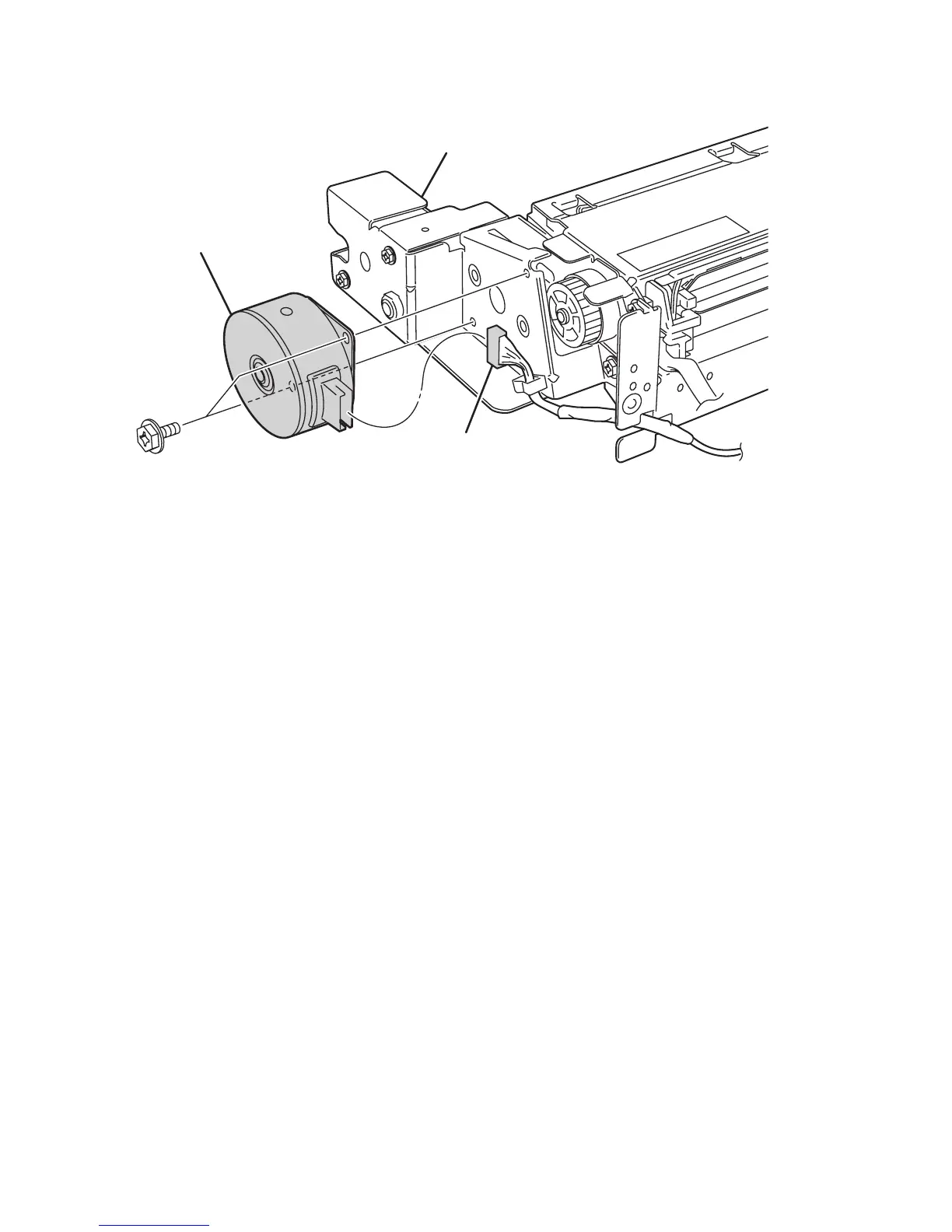

Feeder Assembly
Feed/Lift Up
Motor
Connector
s5500-104
To Next Page
