8-40 Phaser 5500 Printer Service Manual
Lower Transportation and Registration
Take Away Bracket
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
3. Remove Door A (page 8-46).
4. Open Door B.
PL4.1.1
5. Remove the two screws securing the Take Away Bracket to the printer.
6. Disconnect the harness and release the harness from the clamp on the Take Away
Bracket.
7. Disconnect the Door B Interlock Switch from the harness and remove the Take
Away Bracket.

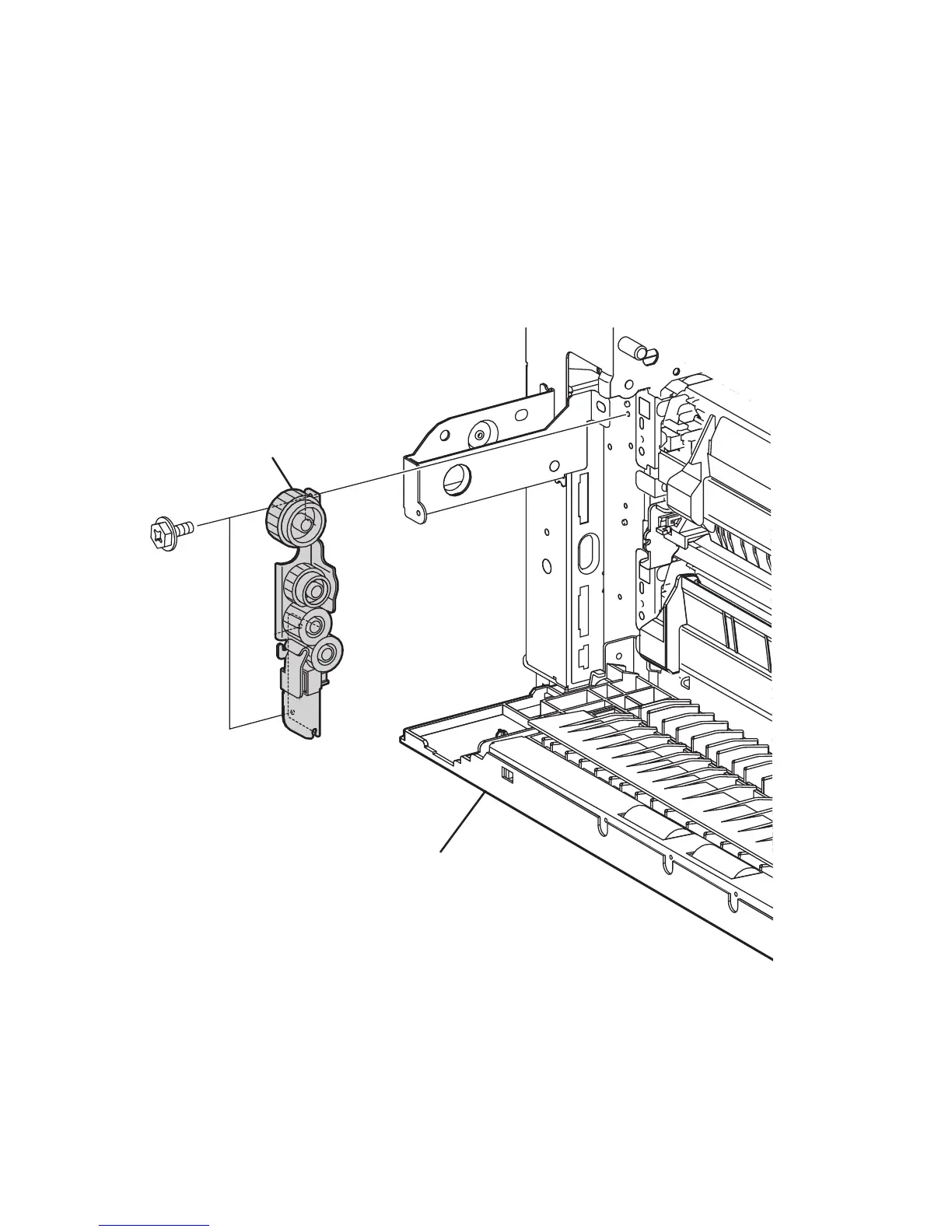

Take Away Bracket
s5500-139
Door B
