8-20 Phaser 5500 Printer Service Manual
5. Release the harness clamps on the AC Accessory Panel.
6. Remove the two screws securing the switch bracket.
7. Remove the switch together with the bracket.
8. Disconnect the connector from the switch.
9. Remove the one screw securing the switch to the bracket.

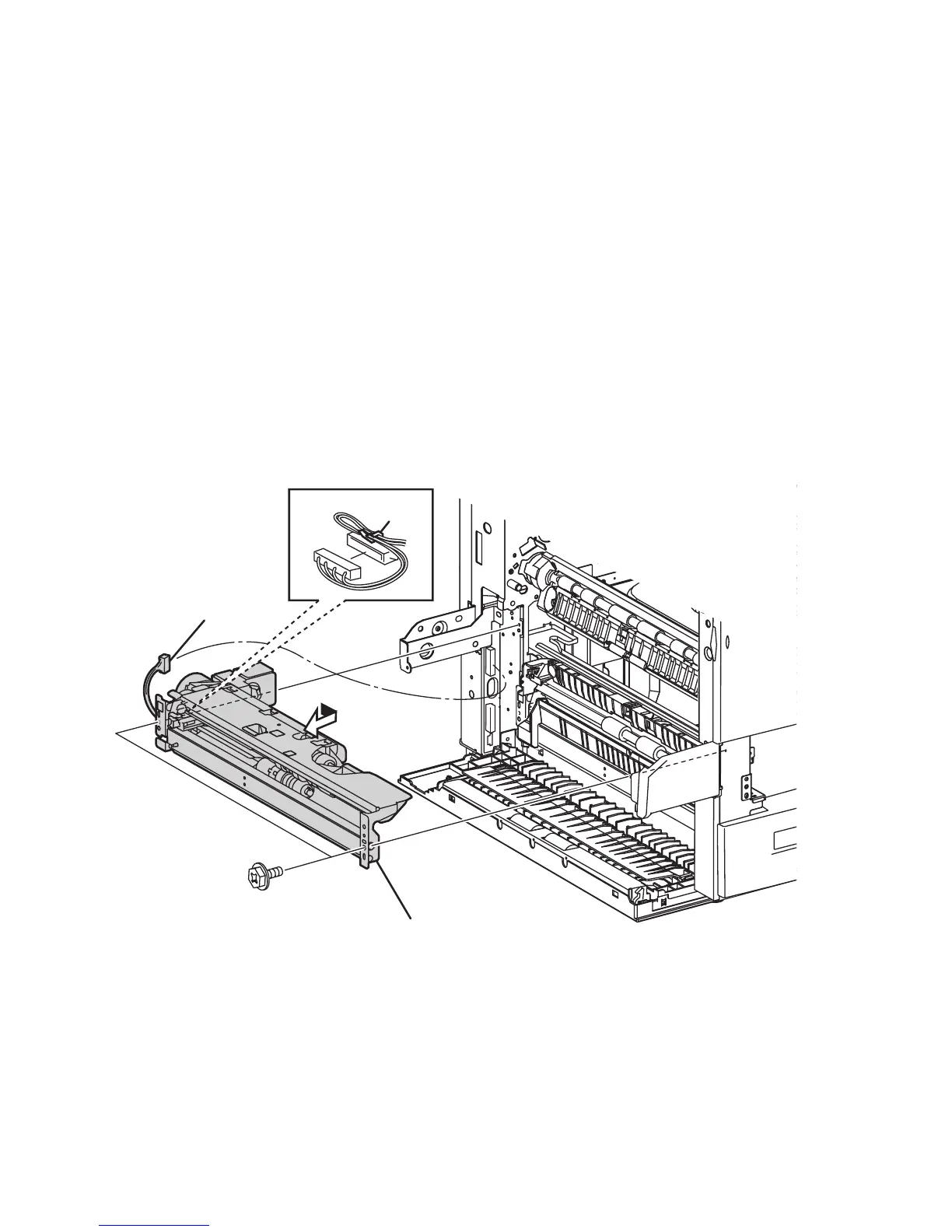

Tray 2 Feeder
1. Remove the Tray 1/MPT Rear Cover (page 8-16)
2. Remove the Tray 1/MPT Feeder (page 8-32).
3. Remove Door A (page 8-46).
4. Remove the Take Away Bracket (page 8-40).
5. Remove Tray 2.
6. Release the harness from the two clamps on the frame.
7. Disconnect the connector.
8. Remove the two screws securing the Feeder to the frame.
9. Remove the Feeder by moving it in the direction of the arrow.
Replacement Note
When installing the Feeder, fit the two bosses on the frame into the holes on
the Feeder, and transfer the Feed Out Chute to the new Feeder.
Tray 2 Feeder
Harness
Connector
s5500-09
Clamp
To Next Page
