8-38 Phaser 5500 Printer Service Manual
Feed Roller Assembly
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
PL3.2.20)
3. Remove the two screws securing the Pinch Chute to the Tray 1/MPT Lower
Frame. Note the orientation of the roller and remove the Pinch Chute.

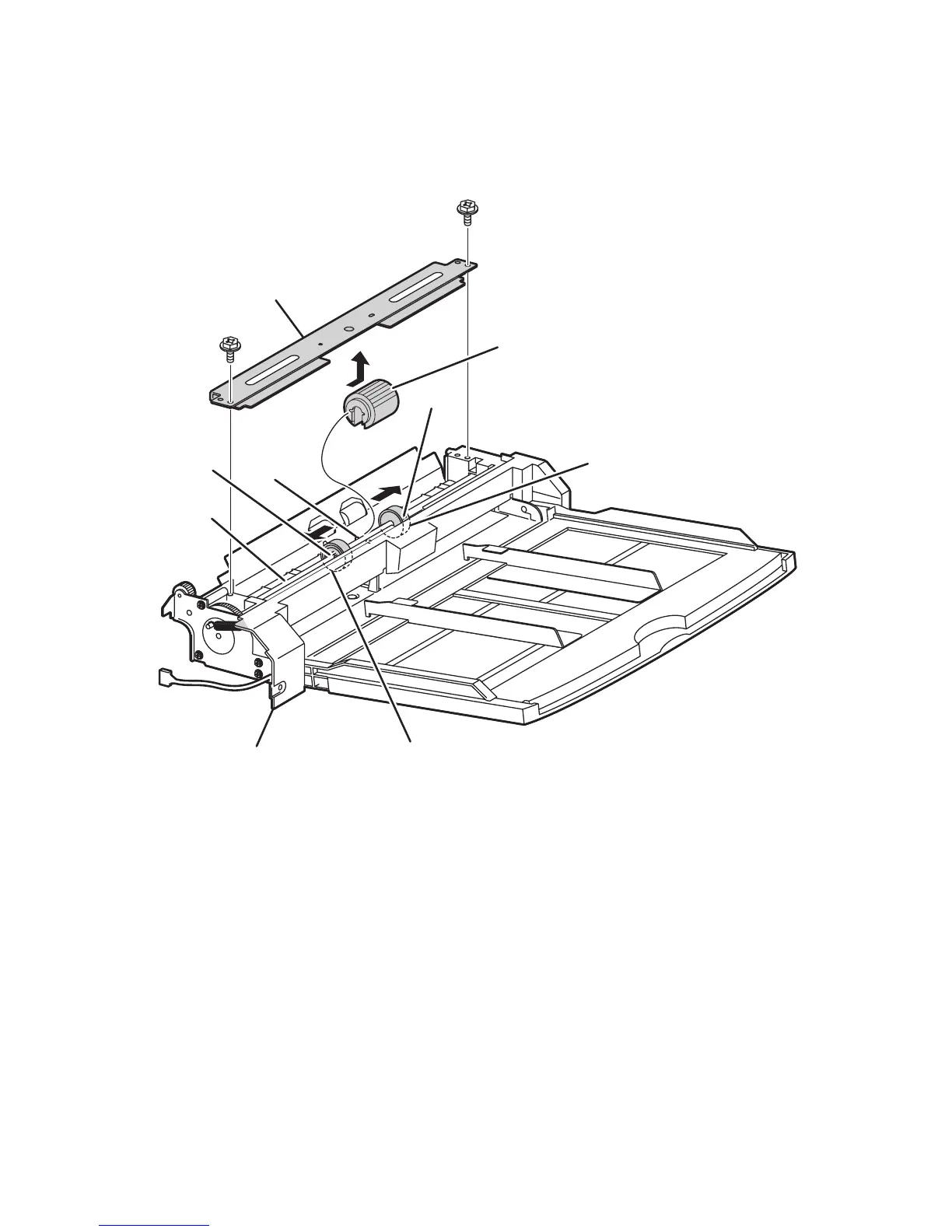

4. While releasing the two hooks of the Roller Core left and right securing the Feed
Roller to the Pick Up Shaft as shown in the figure, and slide the Feed Roller
outward.
5. Remove the Feed Roller from the Pick Up Shaft by moving it in the direction of
the arrow (to the front).
Pinch Chute
Feed Roller
Roller Core
Roller Core
Pick Up Shaft
s5500-133
Lower Frame
Hook
Hook
Pin
To Next Page
