Fuji Xerox Phaser 5500 User Manual

FRU Disassembly 8-49
Registration Transport Assembly
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
3. Remove Door A (page 8-46).
PL4.5.1

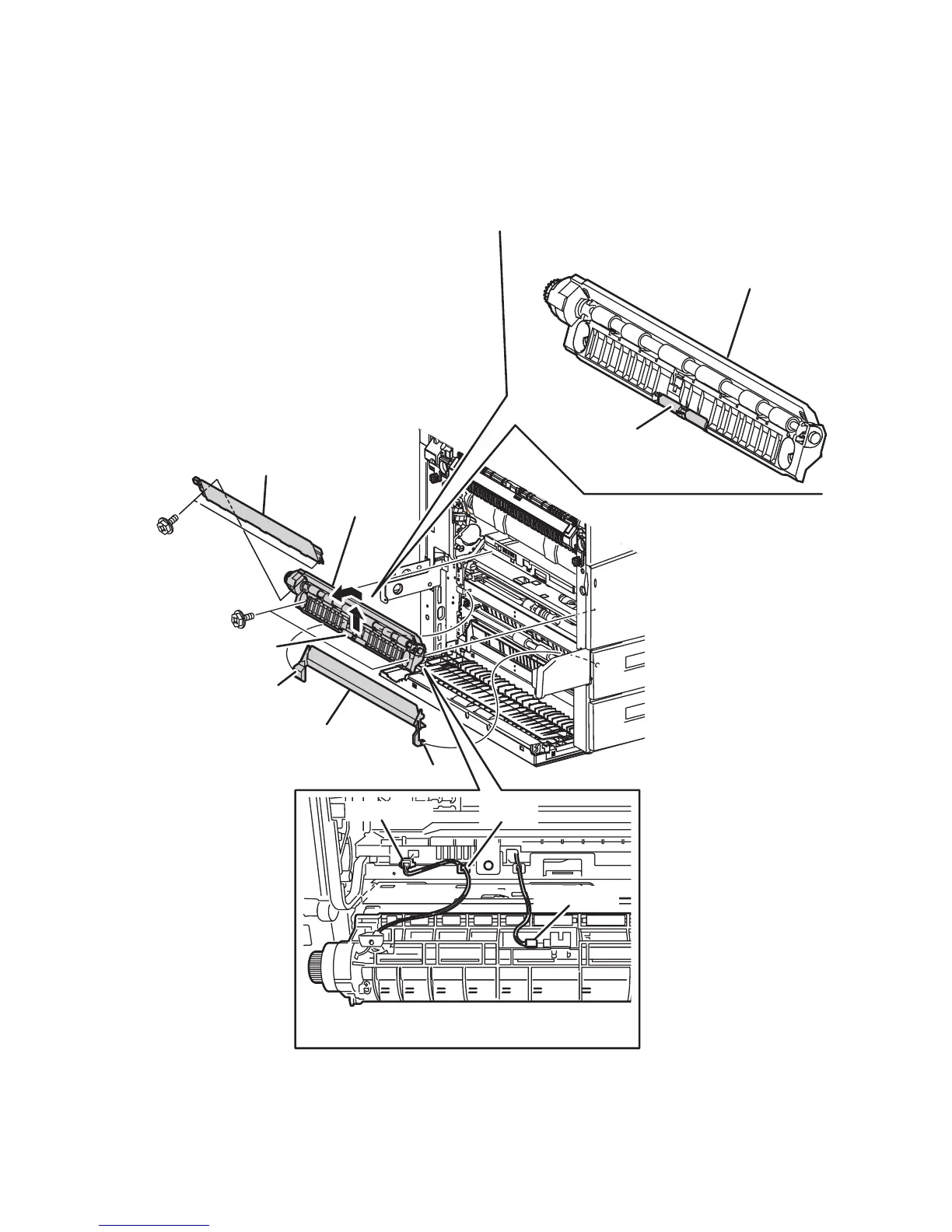

4. Release the bosses on each end of the Feed Out Chute starting with the right end
and remove the Feed Out Chute.
Feed Out Chute
Boss
Pinch Roller
Boss
Registration
Transport
Assembly
Chute-R
Connector
Connector
Clamp
s5500-147
Left View
Pinch Roller
R
eg
i
strat
i
on
Transport
Assembly
