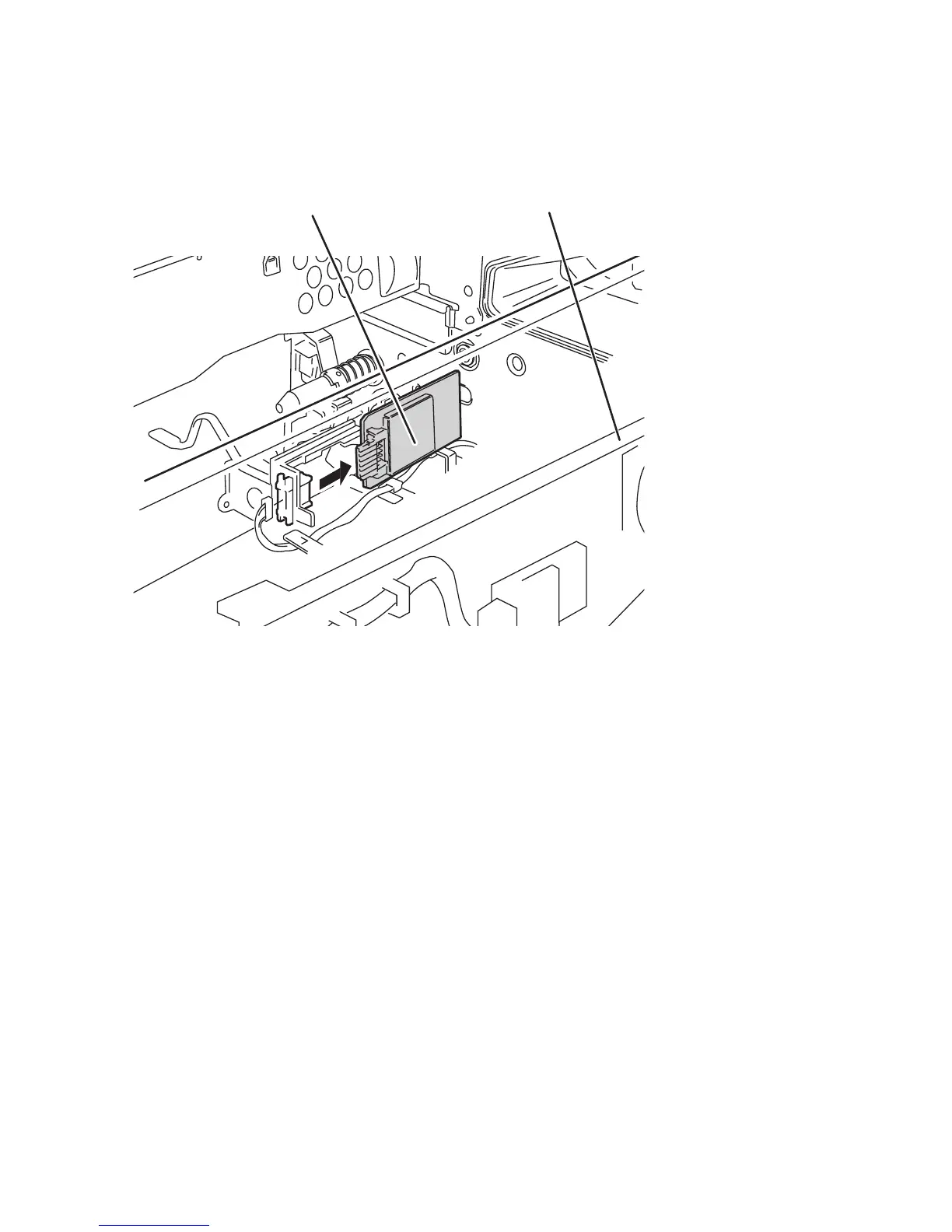

1. Remove the Top Cover (page 8-7).
PL5.1.8
2. Disconnect the connector from the Drum Cartridge CRUM PWB.
3. Remove the Drum Cartridge CRUM PWB by moving it in the direction of the
arrow.
Drum Cartridge CRUM PWB
Toner Dispense
Assembly
s5500-158
