FRU Disassembly 8-27
Tray 2 and 3 Level Sensor
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
3. Remove Door A (page 8-46).
4. Remove the Take Away Bracket (page 8-40).
5. Remove the Tray 2 Feeder (page 8-20) or Tray 3 Feeder (page 8-21).
6. Remove the Level Sensor Actuator (page 8-25).
PL2.3.14

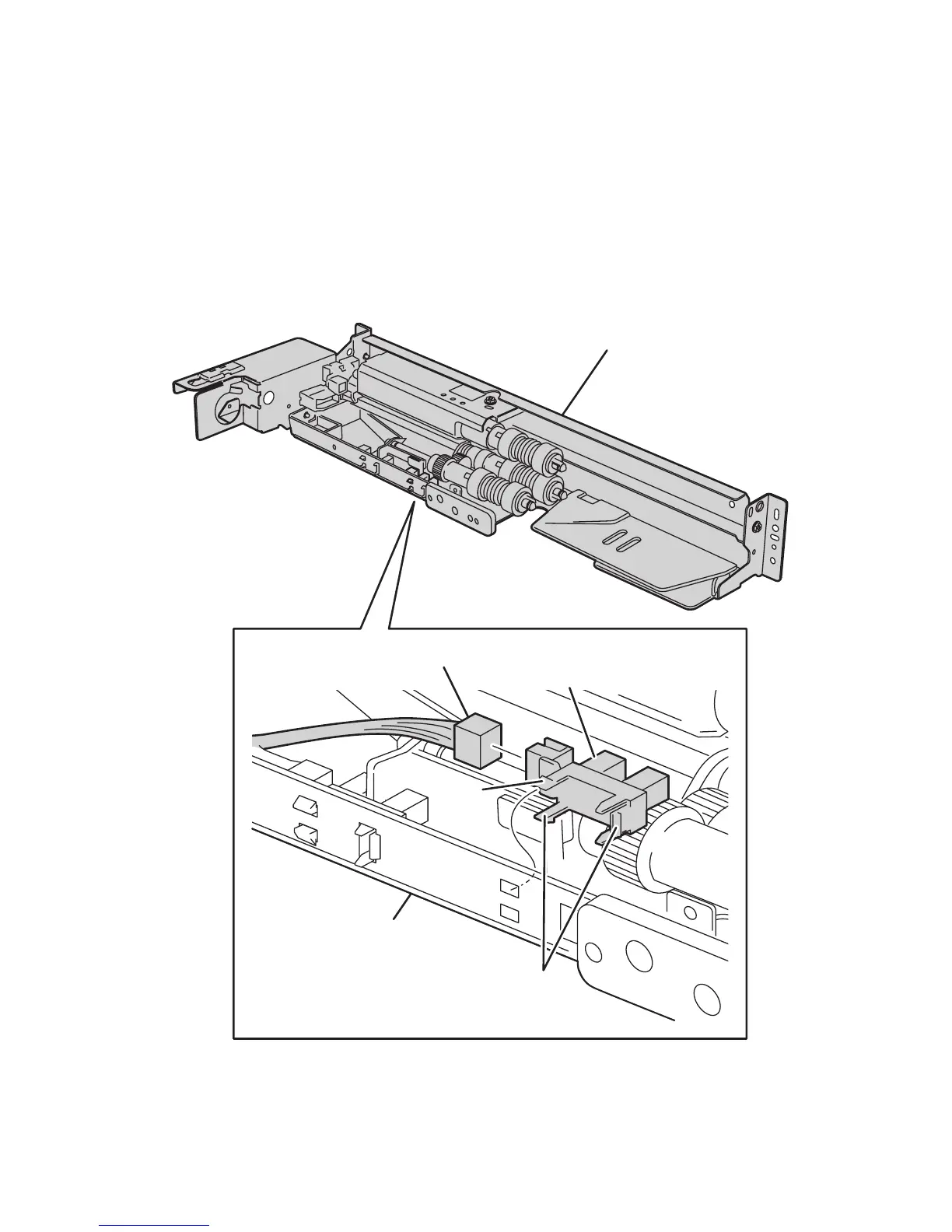

7. Release the hooks securing the Level Sensor to the Upper Frame as shown in the
figure.
8. Disconnect the connector from the Level Sensor and remove the sensor.
Level Sensor
Harness
Hook
s5500-110
Feeder
Upper Frame
Hooks
To Next Page
