FRU Disassembly 8-15
Upper Rear Cover
1. Remove the I/P Board Cover (page 8-14).
PL1.2.5

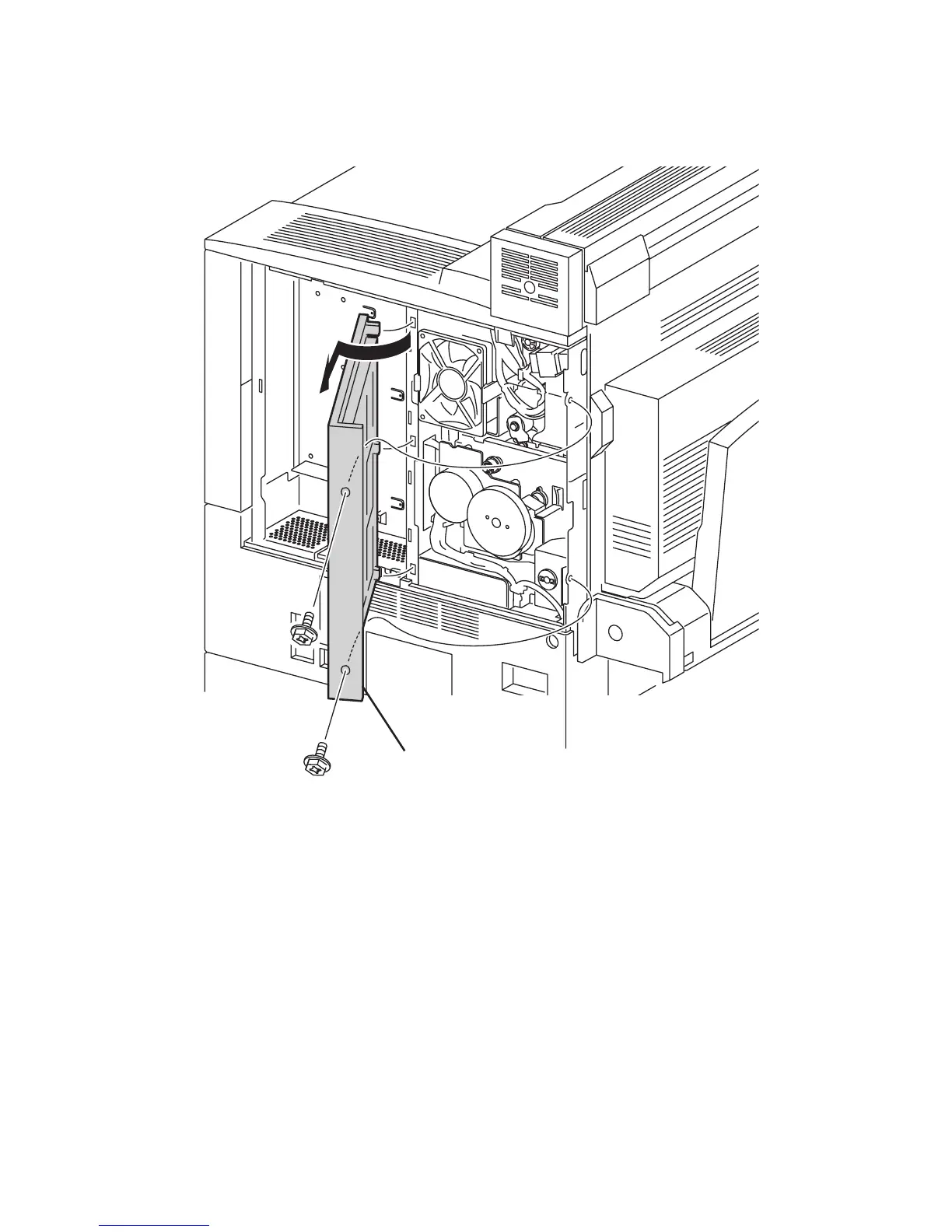

2. Remove the two screws securing the Upper Rear Cover to the printer.
3. Remove the Upper Rear Cover by moving it in the direction of the arrow.
s5500-088
Upper Rear Cover
