8-34 Phaser 5500 Printer Service Manual
Tray 1/MPT No Paper Sensor
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
PL3.1.4)
3. Release the two hooks securing the Upper Frame to the Tray 1 Feeder, and move
the Upper Frame in the direction of the arrow to remove.
4. Disconnect the connector from the sensor.
5. Release the hooks securing the sensor to the Tray 1 upper frame.
6. Remove the sensor.

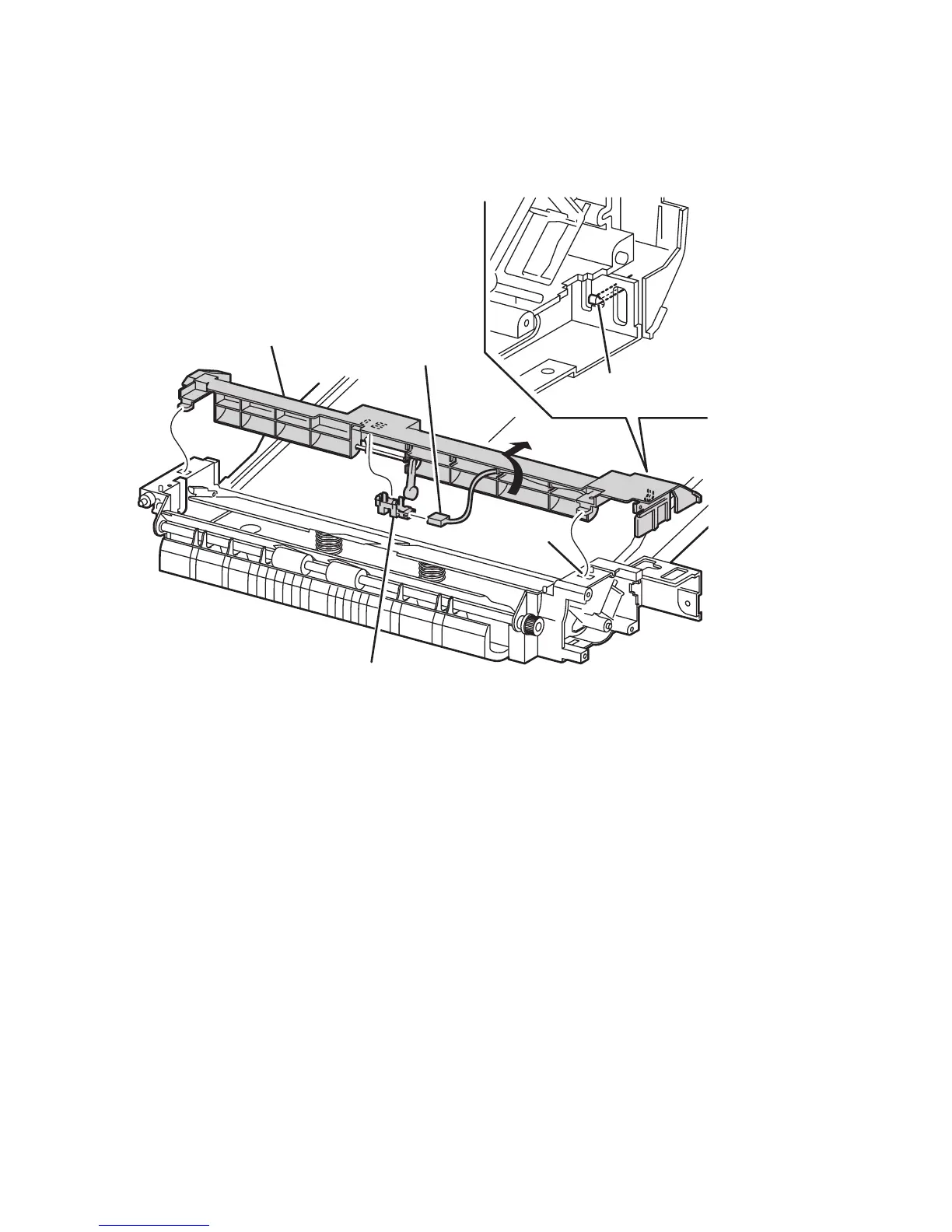

Upper Frame
Connector
Hook
(Upper Frame)
Slot
No Paper Sensor
s5500-126
To Next Page
