FRU Disassembly 8-83
Drive
Main Drive Belt
1. Remove the I/P Board Cover (page 8-14).
2. Remove the Upper Rear Cover (page 8-15).
3. Remove the Exit 1 Top Cover (page 8-18).
PL7.1.5

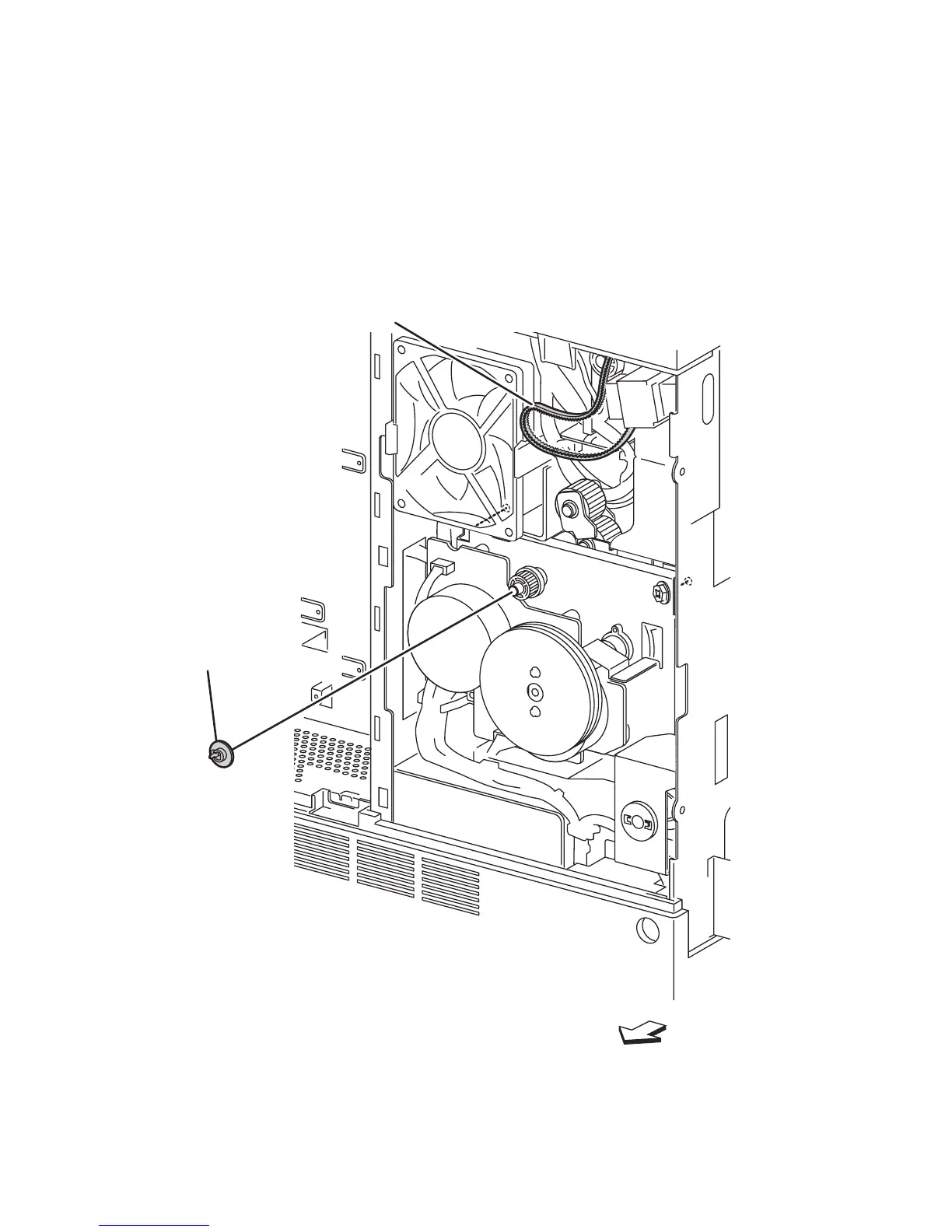

4. Release the hook on the Exit Flange securing the belt to the Motor Assembly to
remove the Exit Flange.
Rear
s5500-176
Main Drive Belt
Exit Flange
