8-54 Phaser 5500 Printer Service Manual
Feed Out Sensor 3
1. Remove the Tray 1 Feeder (page 8-32).
2. Remove Door A (page 8-46).
3. Open Door B.
PL4.5.18
Caution
The Take Away Chute is easily damaged if the latches located on the backside of
the chute are not released before attempting to remove the chute from the frame.
Release these latches before attempting to remove the Take Away Chute.

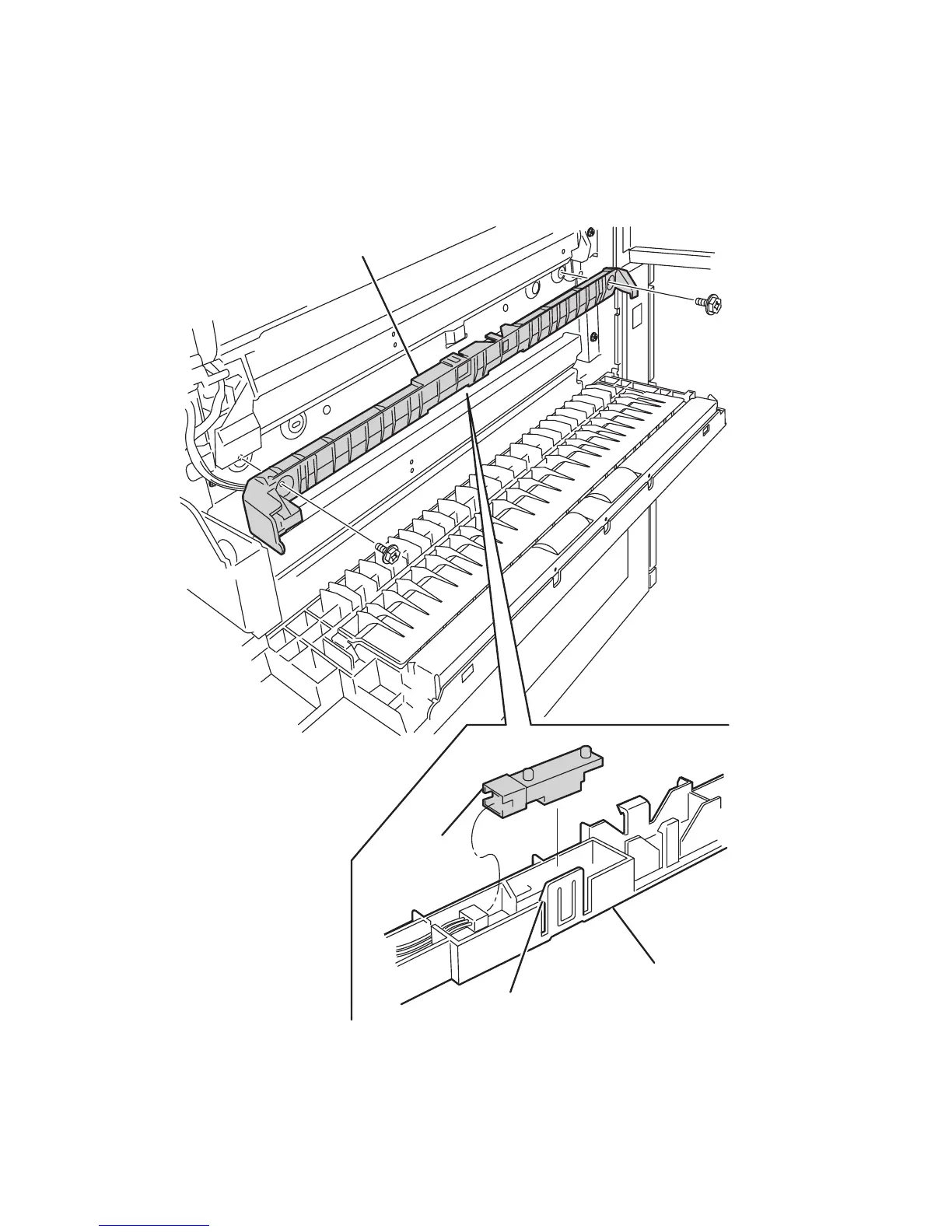

Take Away Chute
Take Away Chute
Feed Out
Sensor 3
Hook
s5500-152
