Fuji Xerox Phaser 5500 User Manual

FRU Disassembly 8-77
Fuser Exit Sensor
1. Open Door A.
2. Remove the Fuser (page 8-76).
PL6.1.4
3. Remove the screw securing the bracket to the frame.
4. Disconnect the connector from the sensor.
5. Release the three hooks securing the sensor to the bracket.

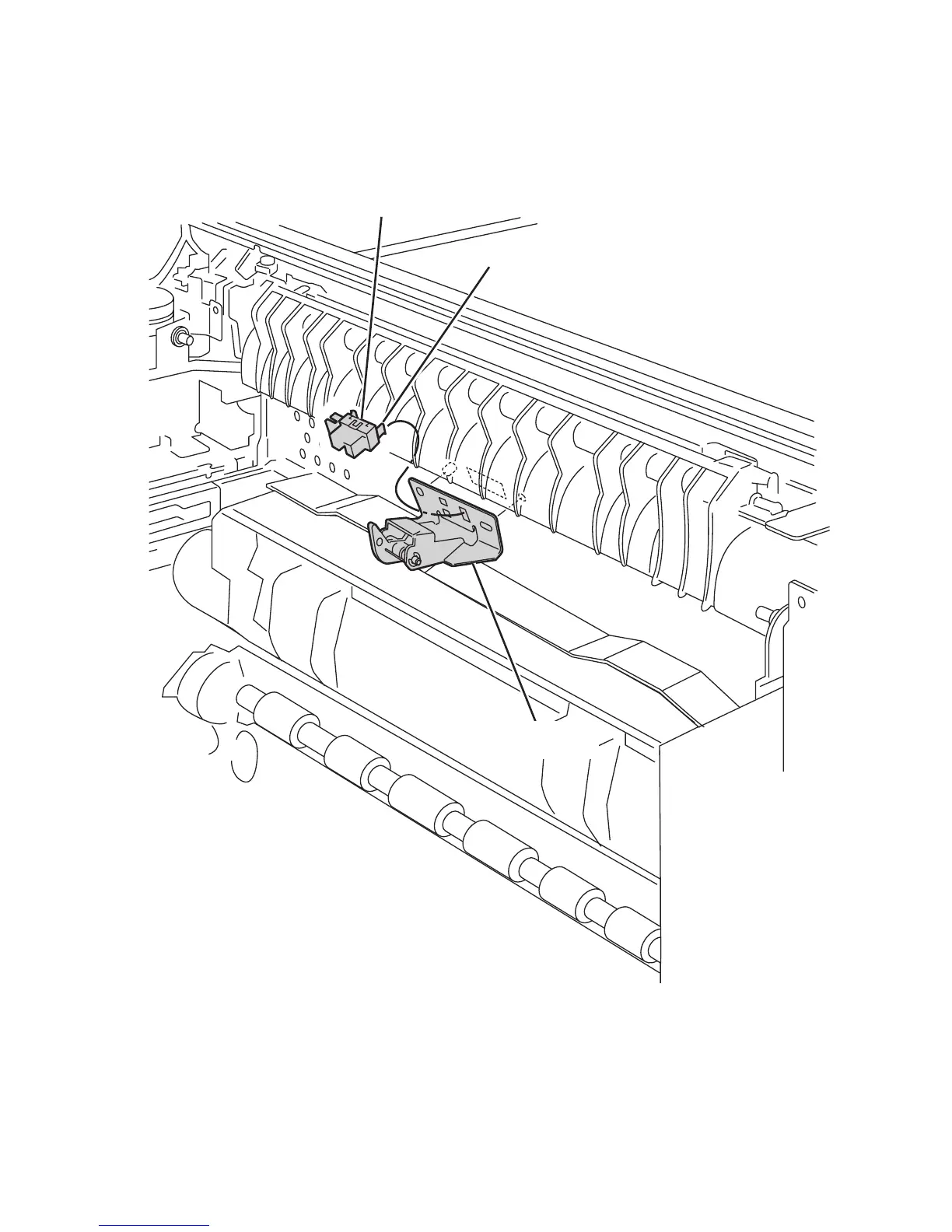

Fuser Exit Sensor
Hook
Sensor Bracket
s5500-166
