FRU Disassembly 8-9
Inner Main Cover
1. Remove the Top Cover (page 8-7).
2. Remove the Front Door (page 8-8).
3. Remove the Left Front Cover (page 8-5).
PL1.1.13
4. Open Door A.
5. Remove the Drum Cartridge.
6. Remove the three screws securing the Inner Main Cover to the frame.
7. Remove the Inner Main Cover by tilting the cover outwards and lifting to release
the hooks.
Replacement Note
When installing, put the four lower hooks on the Inner Main Cover inside the
rolled edge of the printer frame.

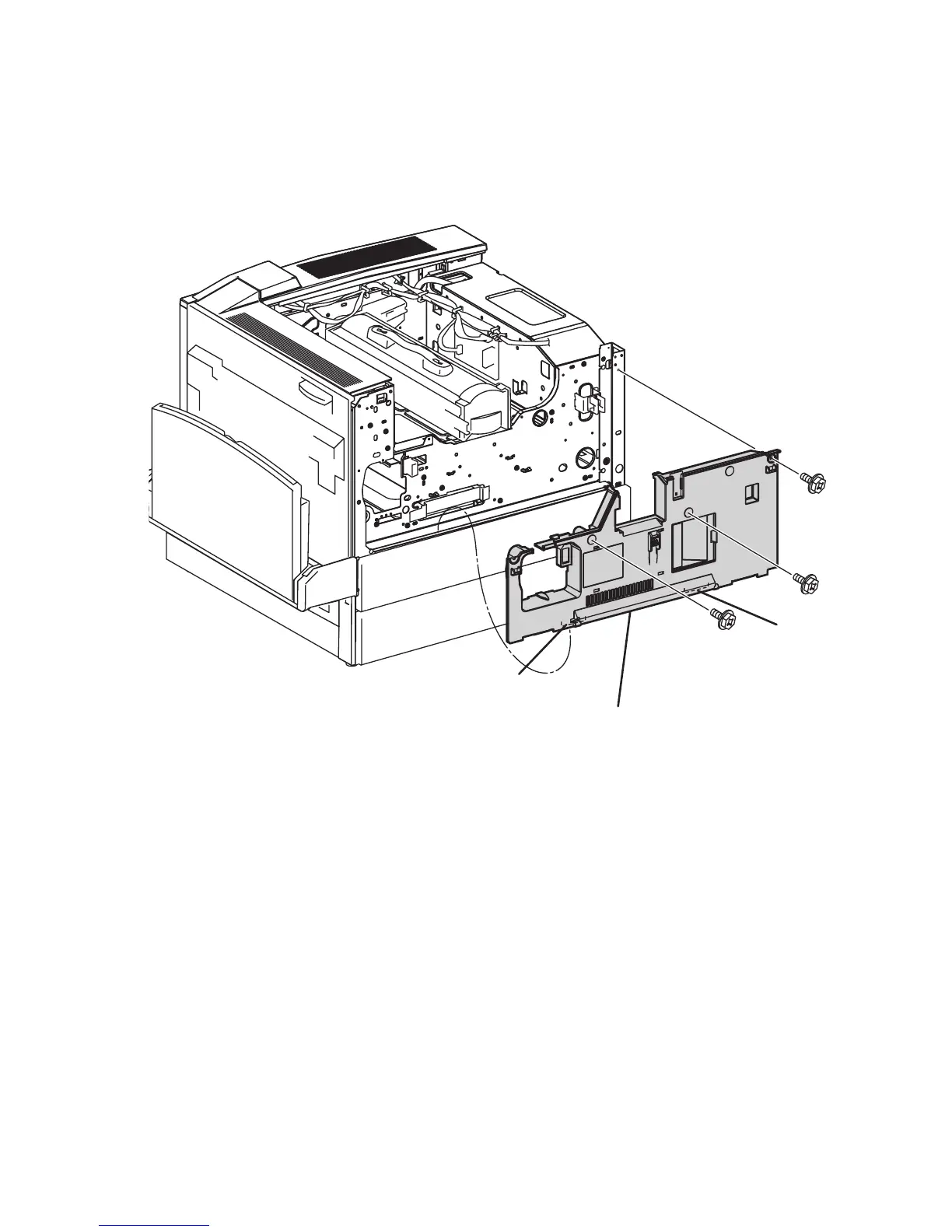

Inner Main Cover
s5500-081
Hook
Hook
To Next Page
