FRU Disassembly 8-23
10. Remove the Take Away Roller assembly (page 8-41).
11. Release the harness from the two clamps on the frame.
12. Disconnect the connector.
13. Remove the two screws securing the Feeder to the frame.
14. Remove the Feeder by moving it in the direction of the arrow.
Replacement Note
When installing the Feeder, fit the two bosses on the frame into the holes on
the Feeder. When installing the Take Away Chute, fit the bosses on the Take
Away Chute into the holes on the frame.
Feed/Lift Motor
1. Remove the Tray 1/MPT Rear Cover (page 8-16).
2. Remove the Tray 1/MPT Feeder (page 8-32).
3. Remove Door A (page 8-46).
4. Remove the Take Away Bracket (page 8-40).

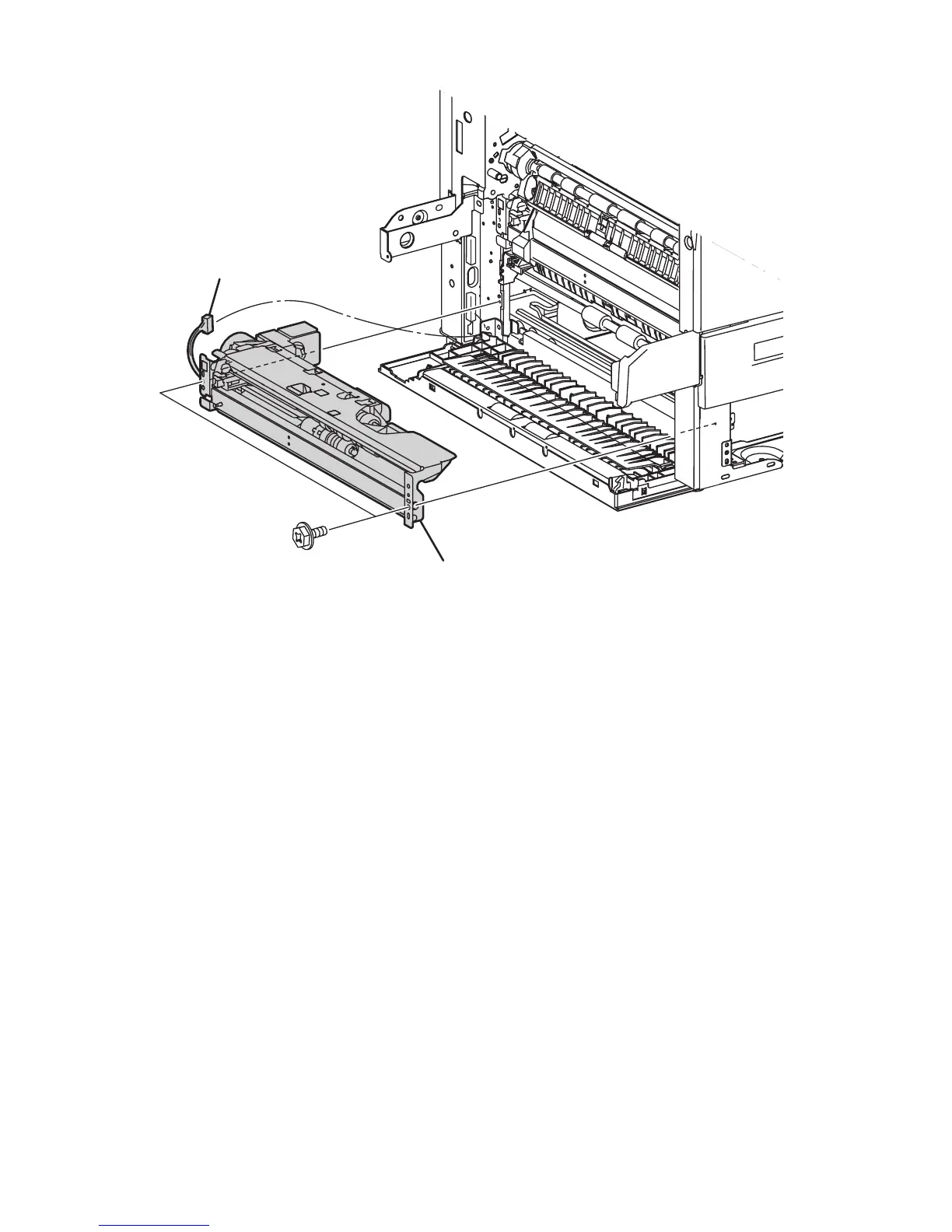

Tray 3 Feeder
s5500-097
Harness
Connector
To Next Page
